ZF 3hp22 gear shift/parking lock for BMW 5 Series E12 525 (1981)

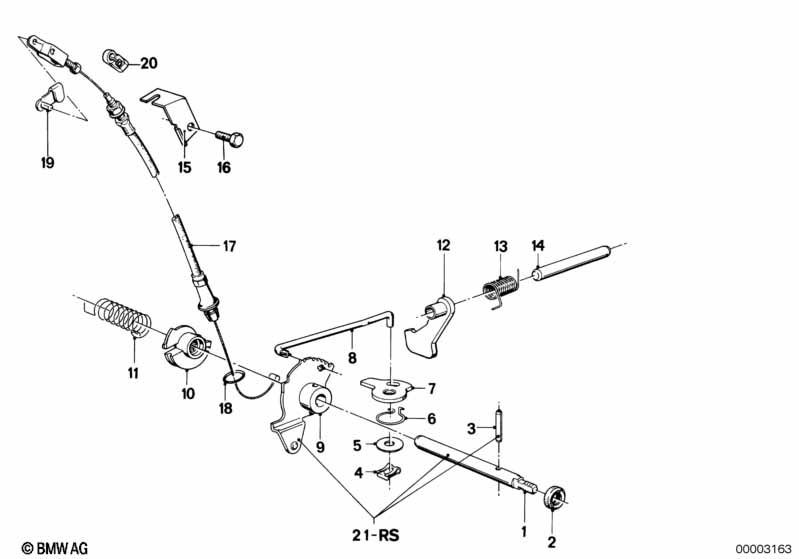

This ZF 3hp22 gear shift/parking lock technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 528A(0)4732101 / 528A(00)4745340 | |||||||||
| 01 | Repair kit selector rod | 1 | 05/1977 | 24341207059 | $30.05 | ENDED | Shop at ECS Tuning | |||
| 02 | Shaft seal | 10X18X5 | 1 | 05/1977 | 24521207430 | $3.35 | ENDED | Shop at ECS Tuning | ||
| 03 | Repair kit selector rod | 1 | 05/1977 | 24341207059 | $30.05 | ENDED | Shop at ECS Tuning | |||
| 04 | Lock Ring | 1 | 05/1977 | 24341206855 | ENDED | Shop at ECS Tuning | ||||
| 05 | Washer | 1 | 05/1977 | 24341207289 | $0.66 | ENDED | Shop at ECS Tuning | |||
| 06 | Spring | 1 | 05/1977 | 24341206010 | $1.44 | ENDED | Shop at ECS Tuning | |||
| 07 | Locker cam | 1 | 05/1977 | 24341206714 | $3.66 | ENDED | Shop at ECS Tuning | |||
| 08 | Connection rod | 1 | 05/1977 | 24341206001 | ENDED | Shop at ECS Tuning | ||||
| 09 | Repair kit selector rod | 1 | 24341207059 | $30.05 | ENDED | Shop at ECS Tuning | ||||
| 10 | Cam,accelerator | 1 | 05/1977 | 24341208433 | ENDED | Shop at ECS Tuning | ||||
| 11 | Retainer spring | 1 | 05/1977 | 24341206199 | $4.88 | Shop at ECS Tuning | ||||
| 12 | Pawl | 1 | 05/1977 | 24341206712 | $26.37 | ENDED | Shop at ECS Tuning | |||
| 13 | Retainer spring | 1 | 05/1977 | 24341206713 | $1.04 | ENDED | Shop at ECS Tuning | |||
| 14 | Pin | 1 | 05/1977 | 24341206006 | $1.66 | ENDED | Shop at ECS Tuning | |||
| 17 | Accelerator bowden cable | 1 | 05/1977 | 24341206280 | $21.63 | ENDED | Shop at ECS Tuning | |||
| 18 | O-ring | 1 | 05/1977 | 24231215455 | $1.81 | Shop at ECS Tuning | ||||
| 19 | Bolt | 1 | 05/1977 | 24511201415 | $1.58 | ENDED | Shop at ECS Tuning | |||
| 21 | Repair kit selector rod | 1 | 05/1977 | 24341207059 | $30.05 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 525 ZF 3hp22 gear shift/parking lock?
- This technical diagram illustrates the ZF 3hp22 gear shift/parking lock within the Automatic transmission group for the 5 Series E12 525 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Repair kit selector rod (Part #24341207059).
- Which models use the hardware listed in this ZF 3hp22 gear shift/parking lock?
- The hardware and components featured in the ZF 3hp22 gear shift/parking lock are specific to the 5 Series E12 525 produced during 1981. These technical specifications ensure that parts like the Repair kit selector rod (24341207059) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 3hp22 gear shift/parking lock assembly?
- Each item in the ZF 3hp22 gear shift/parking lock corresponds to the numbered list below the illustration. For the 5 Series E12 525, you can identify the Repair kit selector rod by locating its position on the schematic, which then links to the official BMW part number 24341207059 for the Automatic transmission section.
