ZF 3hp22 mounting parts control unit for BMW 7 Series E23 735i (1986)

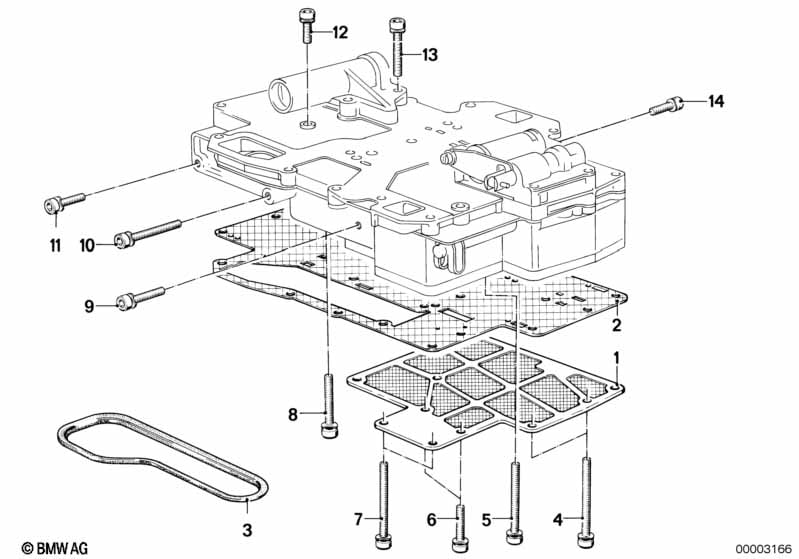

This ZF 3hp22 mounting parts control unit technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil strainer | 1 | 24341209747 | $25.53 | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 1 | 24341216173 | $2.64 | Shop at ECS Tuning | |||||
| 03 | Profile-gasket | 1 | 24341207039 | $5.29 | Shop at ECS Tuning | |||||
| 04 | Fillister-head screw | M5X85 | 2 | 24341207608 | $2.11 | ENDED | Shop at ECS Tuning | |||
| 05 | Fillister-head screw | M5X75 | 3 | 24341207609 | $2.42 | ENDED | Shop at ECS Tuning | |||
| 06 | Torx bolt | M5X50 | 3 | 24341207612 | $1.18 | Shop at ECS Tuning | ||||
| 07 | Fillister-head screw | M6X83 | 7 | 24341207606 | $3.14 | ENDED | Shop at ECS Tuning | |||
| 08 | Fillister-head screw | M6X45 | 5 | 24341207607 | $0.96 | ENDED | Shop at ECS Tuning | |||
| 09 | Fillister-head screw | M5X30 | 1 | 24341207614 | ENDED | Shop at ECS Tuning | ||||
| 10 | Fillister-head screw | M5X45 | 1 | 24341207613 | $0.63 | ENDED | Shop at ECS Tuning | |||
| 11 | Fillister-head screw | M5X22 | 3 | 24341207616 | ENDED | Shop at ECS Tuning | ||||
| 12 | Torx bolt | M5X25 | 2 | 24341207615 | ENDED | Shop at ECS Tuning | ||||
| 13 | Fillister-head screw | M5X55 | 4 | 24341207611 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 14 | Fillister-head screw | M5X16 | 9 | 24341207617 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
