ZF 3hp22 drive clutch B for BMW 7 Series E23 735i (1982)

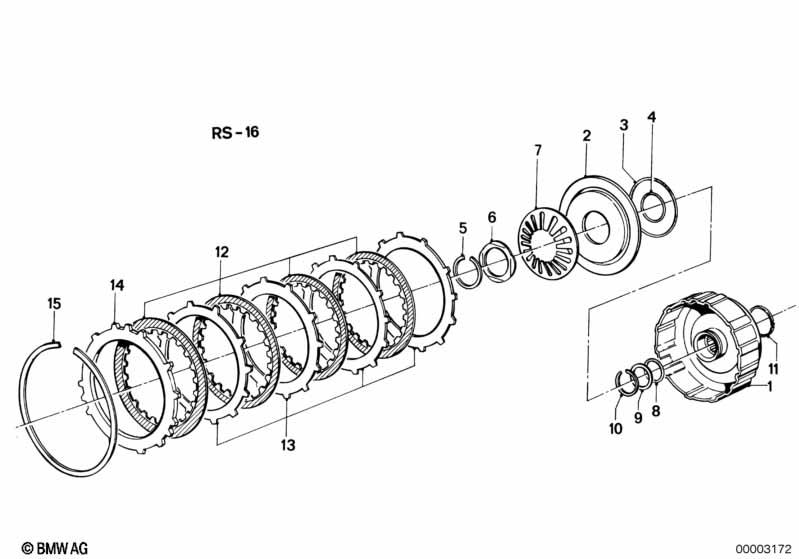

This ZF 3hp22 drive clutch B technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 3HP22 | |||||||||
| 01 | Cylinder | 1 | 24231216352 | $100.48 | ENDED | Shop at ECS Tuning | ||||
| 03 | O-ring | 1 | 24231215448 | $9.49 | ENDED | Shop at ECS Tuning | ||||
| 04 | O-ring | 1 | 24231205913 | $2.92 | ENDED | Shop at ECS Tuning | ||||
| 05 | Snap ring | 1 | 24231205932 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| 06 | Circlip | 1 | 24231205931 | $1.73 | ENDED | Shop at ECS Tuning | ||||
| 07 | Diaphragm spring | 1 | 24231205930 | $8.85 | ENDED | Shop at ECS Tuning | ||||
| 08 | O-ring | 1 | 24341422152 | $1.59 | Shop at ECS Tuning | |||||
| 09 | backup ring | 1 | 24231215423 | $1.00 | ENDED | Shop at ECS Tuning | ||||
| 10 | Snap ring | 1 | 24231205934 | $0.84 | ENDED | Shop at ECS Tuning | ||||
| 11 | Rectangring | 1 | 24231215980 | $12.19 | ENDED | Shop at ECS Tuning | ||||
| 12 | Clutch disc | 4 | 24231215770 | $12.49 | Shop at ECS Tuning | |||||
| 13 | Outer disc | 2,20 | 4 | 24231209825 | $9.82 | Shop at ECS Tuning | ||||
| 14 | Disc | 1 | 24231205937 | $27.82 | ENDED | Shop at ECS Tuning | ||||
| 15 | Snap ring | 1 | 24231217134 | $1.33 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i ZF 3hp22 drive clutch B?
- This technical diagram illustrates the ZF 3hp22 drive clutch B within the Automatic transmission group for the 7 Series E23 735i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder (Part #24231216352).
- Which models use the hardware listed in this ZF 3hp22 drive clutch B?
- The hardware and components featured in the ZF 3hp22 drive clutch B are specific to the 7 Series E23 735i produced during 1982. These technical specifications ensure that parts like the Cylinder (24231216352) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 3hp22 drive clutch B assembly?
- Each item in the ZF 3hp22 drive clutch B corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Cylinder by locating its position on the schematic, which then links to the official BMW part number 24231216352 for the Automatic transmission section.
