ZF 3hp22 output for BMW 5 Series E28 520i (1987)

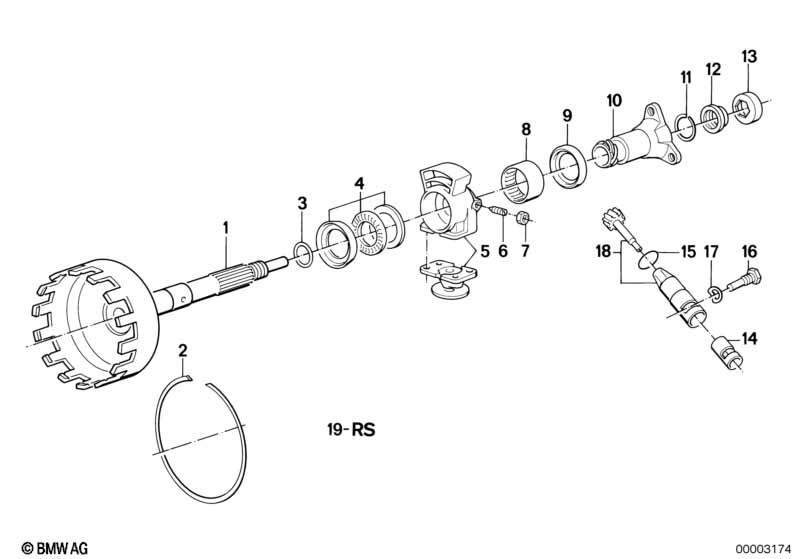

This ZF 3hp22 output technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Output shaft | 1 | 24211209805 | ENDED, +core | Shop at ECS Tuning | |||||
| 01 | Output shaft | 1 | 24211209805 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Snap ring | D=122MM | 1 | 24211205989 | $6.33 | ENDED | Shop at ECS Tuning | |||
| 02 | Snap ring | D=122MM | 1 | 24211205989 | $6.33 | ENDED | Shop at ECS Tuning | |||
| 03 | O-ring | 23,52X1,78 | 1 | 24211209829 | $1.68 | ENDED | Shop at ECS Tuning | |||
| 03 | O-ring | 23,52X1,78 | 1 | 24211209829 | $1.68 | ENDED | Shop at ECS Tuning | |||
| 04 | AX bearing | 1 | 24211209809 | ENDED | Shop at ECS Tuning | |||||
| 04 | AX bearing | 1 | 24211209809 | ENDED | Shop at ECS Tuning | |||||
| 05 | Regulator housing | 1 | 24321205979 | $100.82 | ENDED | Shop at ECS Tuning | ||||
| 05 | Regulator housing | 1 | 24321205979 | $100.82 | ENDED | Shop at ECS Tuning | ||||
| 06 | Grub screw | M6X20 | 1 | 24321205629 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 06 | Grub screw | M6X20 | 1 | 24321205629 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex nut | M6 | 1 | 61211459656 | $1.98 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex nut | M6 | 1 | 61211459656 | $1.98 | ENDED | Shop at ECS Tuning | |||
| 08 | Needle bearing | 48X40X20 | 1 | 24211205993 | ENDED | Shop at ECS Tuning | ||||
| 08 | Needle bearing | 48X40X20 | 1 | 24211205993 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shaft seal | 40X58X10 | 1 | 24111207428 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shaft seal | 40X58X10 | 1 | 24111207428 | ENDED | Shop at ECS Tuning | ||||
| 10 | Output flange | 1 | 24211207051 | $242.86 | ENDED | Shop at ECS Tuning | ||||
| 10 | Output flange | 1 | 24211207051 | $242.86 | ENDED | Shop at ECS Tuning | ||||
| 10 | Output flange | 1 | 24211207052 | ENDED | Shop at ECS Tuning | |||||
| 10 | Output flange | 1 | 24211207052 | ENDED | Shop at ECS Tuning | |||||
| 11 | Snap ring | 1 | 24211205992 | $0.59 | ENDED | Shop at ECS Tuning | ||||
| 11 | Snap ring | 1 | 24211205992 | $0.59 | ENDED | Shop at ECS Tuning | ||||
| 12 | Collar nut | M20X1,5 | 1 | 23221201331 | $6.99 | Shop at ECS Tuning | ||||
| 12 | Collar nut | M20X1,5 | 1 | 23221201331 | $6.99 | Shop at ECS Tuning | ||||
| 13 | Securing plate | 1 | 23221201330 | $2.33 | Shop at ECS Tuning | |||||
| 13 | Securing plate | 1 | 23221201330 | $2.33 | Shop at ECS Tuning | |||||
| For vehicles with Taxi package |
S581A=Yes |
|||||||||
| 14 | Cap | 1 | 24111206749 | $2.30 | Shop at ECS Tuning | |||||
| 14 | Cap | 1 | 24111206749 | $2.30 | Shop at ECS Tuning | |||||
| 15 | O-ring | 19X1,8 | 1 | 24211218739 | $1.58 | ENDED | Shop at ECS Tuning | |||
| 15 | O-ring | 19X1,8 | 1 | 24211218739 | $1.58 | ENDED | Shop at ECS Tuning | |||
| 16 | Hex bolt | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning | ||||
| 17 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 17 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 18 | Speedometer drive | 1 | 24211207016 | $40.74 | ENDED | Shop at ECS Tuning | ||||
| 18 | Speedometer drive | 1 | 24211207016 | $40.74 | ENDED | Shop at ECS Tuning | ||||
| 19 | Conversion set speedo drive | 1 | 24111215311 | $445.28 | ENDED | Shop at ECS Tuning | ||||
| 19 | Conversion set speedo drive | 1 | 24111215311 | $445.28 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 19 | Conversion set speedo drive | 1 | 24111215310 | $677.97 | ENDED | Shop at ECS Tuning | ||||
| 19 | Conversion set speedo drive | 1 | 24111215310 | $677.97 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
