Gearbox mounting parts for BMW 3 Series E30 320i (1992)

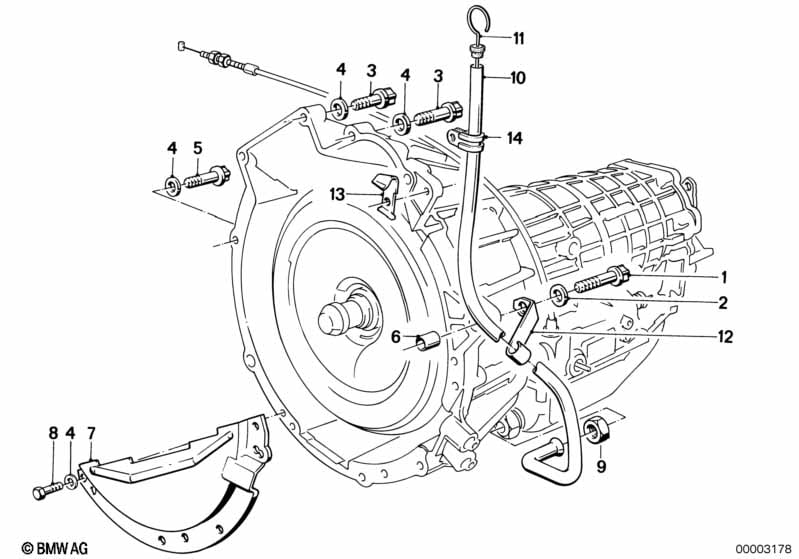

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 4HP22 | |||||||||
| 01 | Torx bolt | M12X75 | 2 | 09/1983 | 23001222893 | $1.62 | Shop at ECS Tuning | |||
| 02 | Washer | 12-200 HV-ZNS3 | 2 | 09/1983 | 07119906063 | Shop at ECS Tuning | ||||
| 03 | Torx bolt | M12X45 | 2 | 09/1983 | 23001222890 | $1.23 | Shop at ECS Tuning | |||
| 04 | Washer | 12-200 HV-ZNS3 | 3 | 09/1983 | 07119906063 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M6X30-8.8-ZNS3 | 1 | 09/1983 | 07119904116 | $0.38 | Shop at ECS Tuning | |||
| 09 | Cap nut | 1 | 09/1983 | 24111205649 | $5.61 | Shop at ECS Tuning | ||||
| 10 | Oil fill-in tube | 1 | 01/1990 | 24101219072 | $25.05 | Shop at ECS Tuning | ||||
| 11 | Dipstick | 1 | 01/1990 | 24111218383 | $17.25 | Shop at ECS Tuning | ||||
| 12 | Shackle | 1 | 09/1983 | 24111215212 | $3.27 | ENDED | Shop at ECS Tuning | |||
| 13 | Holder | 1 | 09/1983 | 24511209794 | $4.12 | ENDED | Shop at ECS Tuning | |||
| 14 | Clamp | D=16/6,4 | 1 | 09/1983 | 61131355966 | $1.62 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
