Gearbox suspension for BMW 3 Series E30 320i (1992)

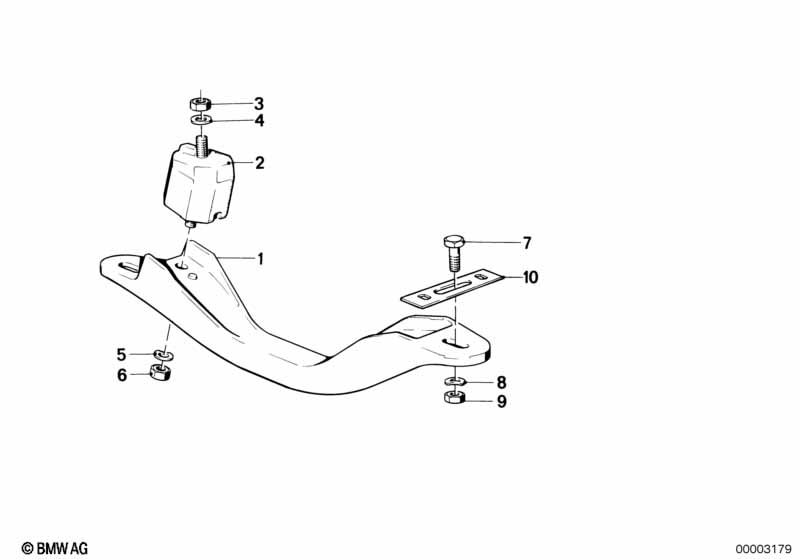

This Gearbox suspension technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 4HP22 For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Cross member | 1 | 24711128371 | $12.48 | Shop at ECS Tuning | |||||
| 02 | Rubber Mounting | 2 | 24711128372 | $21.16 | Shop at ECS Tuning | |||||
| 03 | Hex nut with plate | M8 | 2 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Square headed bolt | M8X18 | 2 | 23711130250 | $4.27 | Shop at ECS Tuning | ||||
| 09 | Hex nut with plate | M8 | 2 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
