Gearbox mounting parts for BMW 7 Series E32 735iL (1992)

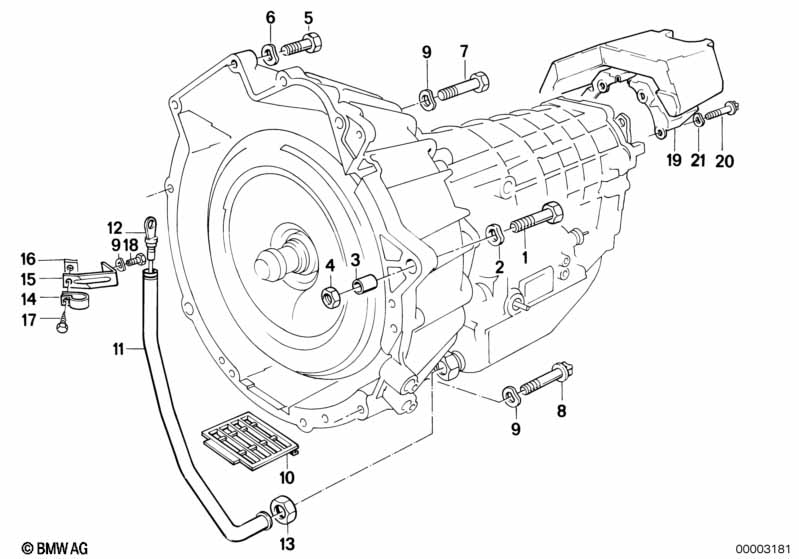

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 4HP22 | |||||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Hex bolt | M10X60 | 2 | 02/1994 | 31111136249 | $11.23 | ENDED | Shop at ECS Tuning | ||
| 02 | Wave washer | B10-ZNS | 2 | 02/1994 | 07119932122 | $0.38 | ENDED | Shop at ECS Tuning | ||
| 03 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X35 | 4 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Wave washer | B8 | 4 | 02/1994 | 07119932095 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 07 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 08 | ASA-Bolt | M8X50-8.8-ZNS3 | 4 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 09 | Wave washer | B8 | 6 | 02/1994 | 07119932095 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 10 | Protection grid f additional fan | 1 | 24111215126 | $1.87 | Shop at ECS Tuning | |||||
| 11 | Oil fill-in tube | 1 | 11/1989 | 24111218393 | $22.15 | Shop at ECS Tuning | ||||
| 12 | Dipstick | 1 | 11/1989 | 24111218383 | $17.25 | Shop at ECS Tuning | ||||
| 13 | Cap nut | 1 | 24111205649 | $5.61 | Shop at ECS Tuning | |||||
| 14 | Clamp | D=16/6,4 | 1 | 61131355966 | $1.62 | ENDED | Shop at ECS Tuning | |||
| 15 | Bracket | 1 | 24111216283 | $1.87 | Shop at ECS Tuning | |||||
| 17 | Hex head screw | ST6,3X19-C-Z2 | 1 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M8X20 | 1 | 23227545751 | $1.68 | Shop at ECS Tuning | ||||
