Gearbox mounting parts for BMW 3 Series E30 325ix (1991)

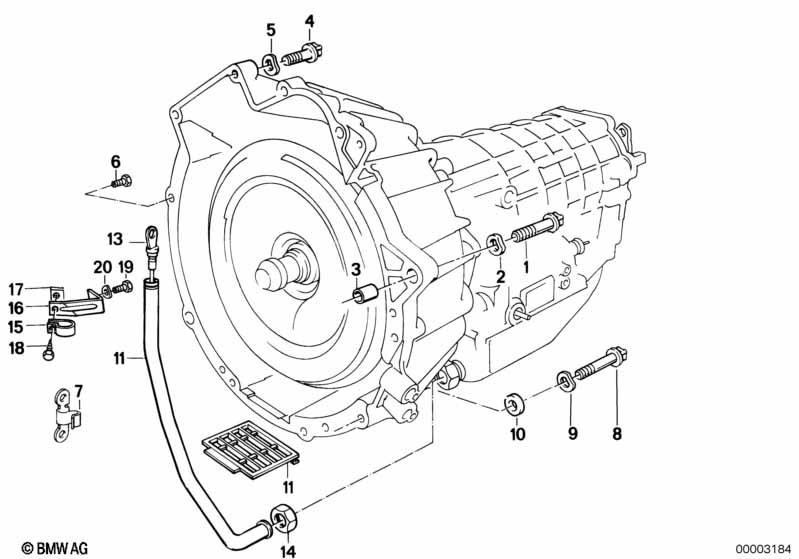

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 4HP22 | |||||||||
| 01 | Torx bolt | M12X75 | 2 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 02 | Washer | 12-200 HV-ZNS3 | 2 | 07119906063 | Shop at ECS Tuning | |||||
| 03 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 04 | Torx bolt | M12X45 | 2 | 23001222890 | $1.23 | Shop at ECS Tuning | ||||
| 05 | Washer | 12-200 HV-ZNS3 | 2 | 07119906063 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X16-8.8-ZNS | 1 | 07119913015 | $0.60 | Shop at ECS Tuning | ||||
| 08 | ASA-Bolt | M8X50-8.8-ZNS3 | 4 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 09 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Shim | 1 | 24001216559 | ENDED | Shop at ECS Tuning | |||||
| 11 | Protection grid f additional fan | 1 | 24111215126 | $1.87 | Shop at ECS Tuning | |||||
| 12 | Oil fill-in tube | 1 | 24111216447 | $26.88 | ENDED | Shop at ECS Tuning | ||||
| 13 | Dipstick | 1 | 24111216250 | $15.78 | Shop at ECS Tuning | |||||
| 14 | Cap nut | 1 | 24111205649 | $5.61 | Shop at ECS Tuning | |||||
| 15 | Clamp | D=16/6,4 | 1 | 61131355966 | $1.62 | ENDED | Shop at ECS Tuning | |||
| 16 | Bracket | 1 | 24111216493 | $2.36 | ENDED | Shop at ECS Tuning | ||||
| 17 | Body nut | ST6,3-2-ZNS3 | 1 | 07129904232 | $0.16 | Shop at ECS Tuning | ||||
| 18 | Hex head screw | ST6,3X19-C-Z2 | 1 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M6X16-8.8-ZNS | 1 | 07119913015 | $0.60 | Shop at ECS Tuning | ||||
