ZF 4hp22/24 drive clutch E for BMW 7 Series E23 732i (1982)

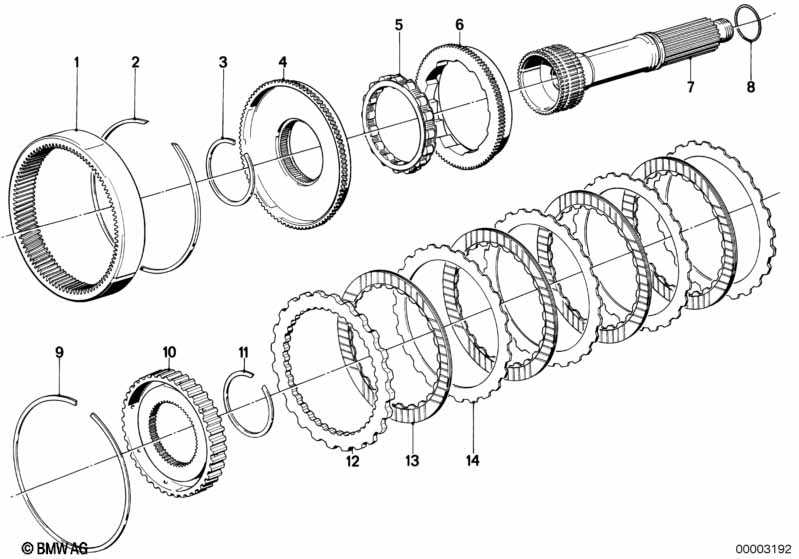

This ZF 4hp22/24 drive clutch E technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hollow gear wheel,output | Z=83 | 1 | 24241215434 | $169.63 | ENDED | Shop at ECS Tuning | |||
| 02 | Snap ring | 1 | 24241215435 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 03 | Snap ring | 1 | 24231215339 | $0.66 | ENDED | Shop at ECS Tuning | ||||
| 04 | Free wheel ring | 1 | 24231217183 | ENDED | Shop at ECS Tuning | |||||
| 05 | Free wheel, complete | 1 | 24237505840 | $299.09 | ENDED | Shop at ECS Tuning | ||||
| 06 | Free wheel, complete | 1 | 24237505840 | $299.09 | ENDED | Shop at ECS Tuning | ||||
| 07 | Output shaft | 1 | 24211216254 | $367.16 | ENDED | Shop at ECS Tuning | ||||
| 08 | O-ring | 25,12X1,78 | 1 | 24211217132 | $0.97 | Shop at ECS Tuning | ||||
| 09 | Snap ring | 1 | 24231215438 | $1.47 | ENDED | Shop at ECS Tuning | ||||
| 10 | Disc carrier | 1 | 24231217163 | $70.69 | ENDED | Shop at ECS Tuning | ||||
| 11 | Snap ring | 1 | 24231215437 | $0.98 | ENDED | Shop at ECS Tuning | ||||
| 12 | Disc | 1 | 24231215439 | $44.90 | ENDED | Shop at ECS Tuning | ||||
| 13 | Clutch disc | 4 | 24231215441 | $11.90 | Shop at ECS Tuning | |||||
| 14 | Outer disc | 4 | 24231215440 | $17.69 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
