ZF 4hp22/24-h control unit+attach.parts for BMW 6 Series E24 633CSi (1984)

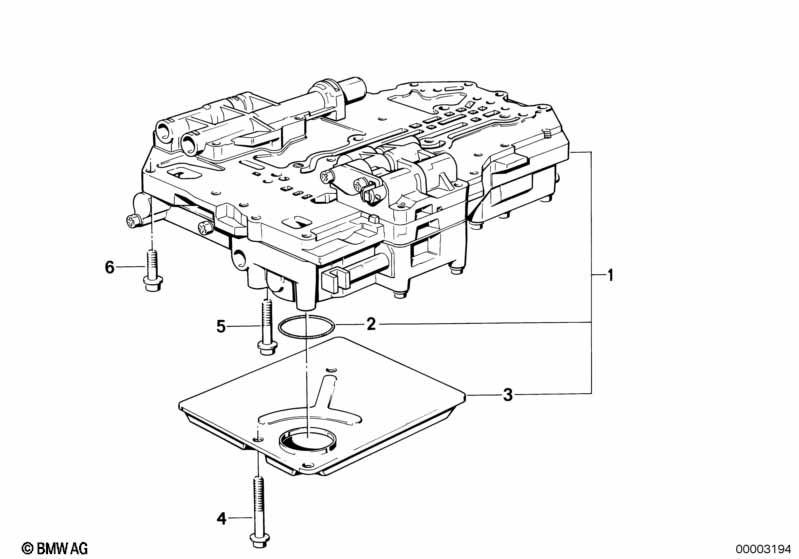

This ZF 4hp22/24-h control unit+attach.parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit | 1 | 24341215797 | ENDED | Shop at ECS Tuning | |||||
| 01 | Control unit | 1 | 24351219461 | $1043.46 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Exch. automatic transmission | 4HP22 | X | 24001217026 | ENDED | Shop at ECS Tuning | ||||
| 02 | O-ring | 1 | 24341217437 | $1.79 | ENDED | Shop at ECS Tuning | ||||
| 02 | O-ring | 1 | 24311218570 | $1.59 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Oil strainer | 1 | 24311218550 | $36.30 | Shop at ECS Tuning | |||||
| 03 | Oil strainer | 1 | 24341215544 | ENDED | Shop at ECS Tuning | |||||
| 03 | Oil strainer | 1 | 24311218550 | $36.30 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | O-ring | 1 | 24311218570 | $1.59 | Shop at ECS Tuning | |||||
| 04 | Fillister-head screw | M6X65 | 5 | 24341215492 | $2.09 | Shop at ECS Tuning | ||||
| 05 | Torx bolt | M6X60 | 3 | 24341422672 | $2.66 | Shop at ECS Tuning | ||||
| 06 | Torx bolt | M6X30 | 6 | 24341421078 | $1.61 | Shop at ECS Tuning | ||||
