ZF 4hp22/24 output for BMW 5 Series E28 520i (1987)

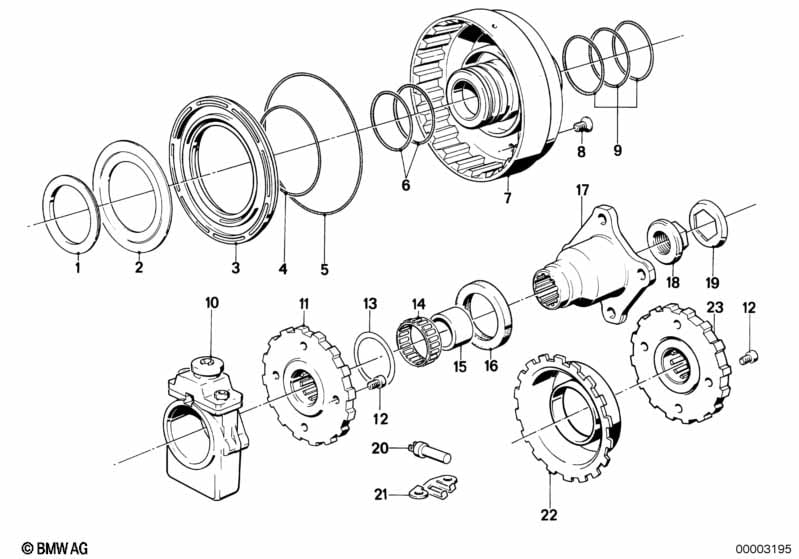

This ZF 4hp22/24 output technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ring | 1 | 24231219069 | $7.79 | ENDED | Shop at ECS Tuning | ||||
| 02 | Diaphragm spring | 1 | 24231215451 | $11.44 | ENDED | Shop at ECS Tuning | ||||
| 03 | Piston | 1 | 24231215454 | $68.85 | ENDED | Shop at ECS Tuning | ||||
| 05 | O-ring | 1 | 24231215456 | $2.49 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rectangring | 2 | 24231217140 | $12.19 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cylinder | 1 | 24231217089 | $150.70 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 07 | Cylinder | 1 | 24231217088 | $182.78 | ENDED | Shop at ECS Tuning | ||||
| 08 | Countersunk head screw | M6X15 | X | 24231215782 | $1.77 | ENDED | Shop at ECS Tuning | |||
| 09 | Rectangring | 3 | 24231217141 | $6.48 | Shop at ECS Tuning | |||||
| 10 | Voltage regulator | 1 | 24231215460 | $182.73 | Shop at ECS Tuning | |||||
| For vehicles with National version italy |
L814A=Yes |
|||||||||
| 10 | Voltage regulator | 1 | 24231216155 | $137.53 | ENDED | Shop at ECS Tuning | ||||
| 11 | Parking lock wheel | 1 | 24341215472 | $161.82 | ENDED | Shop at ECS Tuning | ||||
| 12 | Fillister-head screw | M6X10 | 2 | 24531215594 | ENDED | Shop at ECS Tuning | ||||
| 14 | Needle sleeve | 35X42X12 | 1 | 24111218008 | $14.67 | Shop at ECS Tuning | ||||
| 15 | Inner ring | 1 | 24211215730 | $40.73 | Shop at ECS Tuning | |||||
| 16 | Shaft seal | 40X58X10 | 1 | 24111218009 | $21.95 | Shop at ECS Tuning | ||||
| 17 | Output flange | 1 | 24211215731 | $210.18 | Shop at ECS Tuning | |||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 17 | Output flange | 1 | 24211217135 | $210.18 | ENDED | Shop at ECS Tuning | ||||
| 18 | Collar nut | M20X1,5 | 1 | 23221201331 | $6.99 | Shop at ECS Tuning | ||||
| 19 | Securing plate | 1 | 23221201330 | $2.33 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 520i ZF 4hp22/24 output?
- This technical diagram illustrates the ZF 4hp22/24 output within the Automatic transmission group for the 5 Series E28 520i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Ring (Part #24231219069).
- Which models use the hardware listed in this ZF 4hp22/24 output?
- The hardware and components featured in the ZF 4hp22/24 output are specific to the 5 Series E28 520i produced during 1987. These technical specifications ensure that parts like the Ring (24231219069) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 4hp22/24 output assembly?
- Each item in the ZF 4hp22/24 output corresponds to the numbered list below the illustration. For the 5 Series E28 520i, you can identify the Ring by locating its position on the schematic, which then links to the official BMW part number 24231219069 for the Automatic transmission section.
