Control unit EGS, programmed for BMW 7 Series E32 730iL (1992)

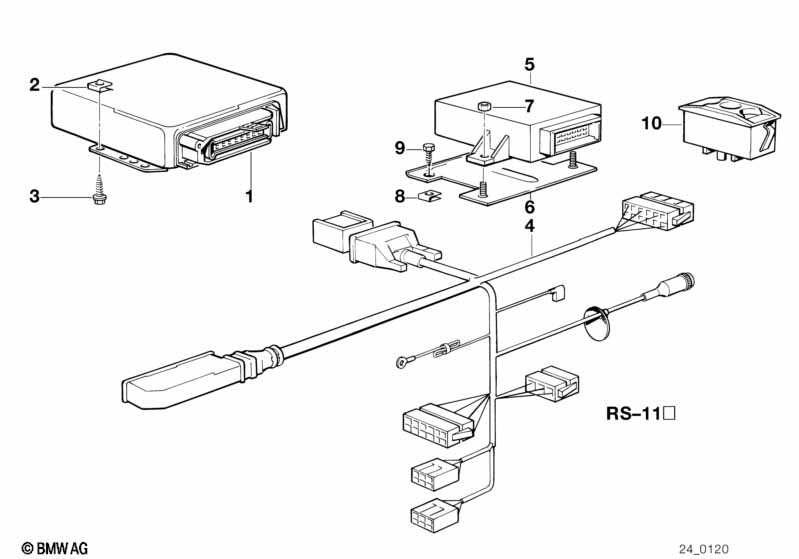

This Control unit EGS, programmed technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 4HP22 EH | |||||||||
| 01 | Exch. control unit EGS with EML | CODE: BH | 1 | 09/1988 | 24611218136 | $1071.36 | ENDED | Shop at ECS Tuning | ||
| 01 | Control unit egs | CODE: BJ | 1 | 09/1988 | 24611218138 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Switzerland |
L804A=Yes |
|||||||||
| 01 | Exch. control unit EGS with EML | CODE: BH | 1 | 09/1989 | 24611218136 | $1071.36 | ENDED | Shop at ECS Tuning | ||
| 01 | Control unit egs | CODE: BJ | 1 | 09/1989 | 24611218138 | ENDED | Shop at ECS Tuning | |||
| 02 | Body nut | ST4,8-9-ZNS3 | 3 | 09/1988 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 03 | Screw | 3 | 09/1988 | 24611216312 | $0.29 | ENDED | Shop at ECS Tuning | |||
| 04 | Cable harness transmission AEGS | 1 | 05/1990 | 24631732151 | $547.96 | ENDED | Shop at ECS Tuning | |||
| 04 | Cable harness transmission AEGS | EML | 1 | 05/1990 | 24631732152 | ENDED | Shop at ECS Tuning | |||
| 05 | Exch. control unit downshift protection | EH | 1 | 24611216511 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket | 1 | 24611216391 | $4.74 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M6 Z1-ZNNIV SI | 2 | 07146778500 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 09 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Switch EH-gearbox | 1 | 61311378634 | $84.81 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
