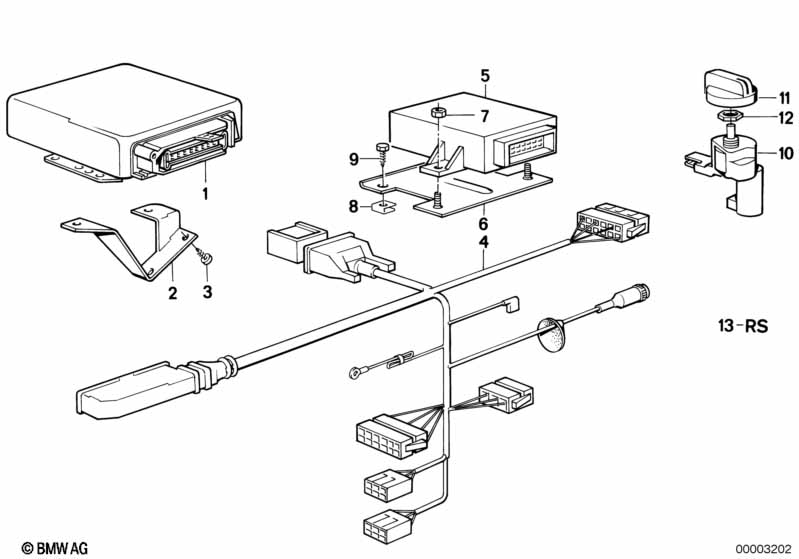

Control unit EGS, programmed for BMW 3 Series E30 320i (1991)
This Control unit EGS, programmed technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 4HP22 For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Control unit egs | CODE: CD | 1 | 12/1988 | 24611218206 | $923.49 | ENDED | Shop at ECS Tuning | ||
| 04 | Cable harness transmission AEGS | 1 | 24631719580 | $520.06 | ENDED | Shop at ECS Tuning | ||||
| 05 | Exch. control unit downshift protection | EH | 1 | 24611216511 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket | 1 | 24611216419 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Holder | 1 | 61131381436 | $0.47 | Shop at ECS Tuning | |||||
| 07 | Plastic nut for coarse threaded pin | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 08 | Body nut | ST4,8-9-ZNS3 | 2 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Switch | 1 | 61311374586 | $65.09 | Shop at ECS Tuning | |||||
| 11 | Button | 1 | 61311372014 | $10.05 | Shop at ECS Tuning | |||||
| 12 | Nut | 1 | 65111363446 | $0.70 | ENDED | Shop at ECS Tuning | ||||
| 13 | Repair kit electrical plug transmission | EH | 1 | 24631215953 | $127.33 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
