ZF 4hp22/24 housing parts/lubric.system for BMW 3 Series E30 320i (1992)

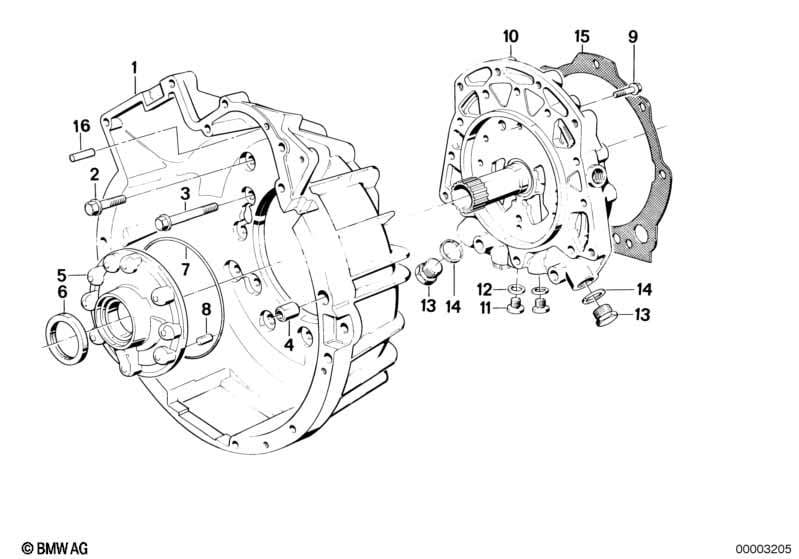

This ZF 4hp22/24 housing parts/lubric.system technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Converter housing | 1 | 24411215732 | $591.48 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M10X30-Z3 | 6 | 24401215401 | $5.20 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex bolt | M10X70-Z3 | X | 24401215402 | $4.42 | ENDED | Shop at ECS Tuning | |||
| 04 | Dowel | D=14,5/11,0MM | 2 | 24411200459 | $13.83 | ENDED | Shop at ECS Tuning | |||
| 05 | Oil pump | 1 | 09/1989 | 24311218660 | $196.54 | Shop at ECS Tuning | ||||
| 06 | Shaft seal | 40X52X7 | 1 | 24311422671 | $11.45 | Shop at ECS Tuning | ||||
| 07 | O-ring | 124,5X3 | 1 | 24311217133 | $7.24 | Shop at ECS Tuning | ||||
| 08 | Sleeve | 8X18 | 1 | 24311218652 | $1.13 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X28-Z3 | 8 | 07119915183 | ENDED | Shop at ECS Tuning | ||||
| 10 | Intermediate plate assy | 1 | 24161219065 | $379.71 | ENDED | Shop at ECS Tuning | ||||
| 11 | Screw plug | M14X1,5 | 2 | 24401215399 | $4.42 | ENDED | Shop at ECS Tuning | |||
| 12 | Gasket ring | A14X18 | 2 | 24401421740 | $0.57 | Shop at ECS Tuning | ||||
| 13 | Screw plug | M20X1,5 | 2 | 24401215398 | $6.12 | ENDED | Shop at ECS Tuning | |||
| 14 | Gasket ring | A20X24-AL | 2 | 07119963340 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Gasket Asbestos Free | 1 | 24111215404 | $3.13 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i ZF 4hp22/24 housing parts/lubric.system?
- This technical diagram illustrates the ZF 4hp22/24 housing parts/lubric.system within the Automatic transmission group for the 3 Series E30 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Converter housing (Part #24411215732).
- Which models use the hardware listed in this ZF 4hp22/24 housing parts/lubric.system?
- The hardware and components featured in the ZF 4hp22/24 housing parts/lubric.system are specific to the 3 Series E30 320i produced during 1992. These technical specifications ensure that parts like the Converter housing (24411215732) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 4hp22/24 housing parts/lubric.system assembly?
- Each item in the ZF 4hp22/24 housing parts/lubric.system corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Converter housing by locating its position on the schematic, which then links to the official BMW part number 24411215732 for the Automatic transmission section.
