ZF 4hp22/24 brake clutch C' for BMW 3 Series E30 324td (1991)

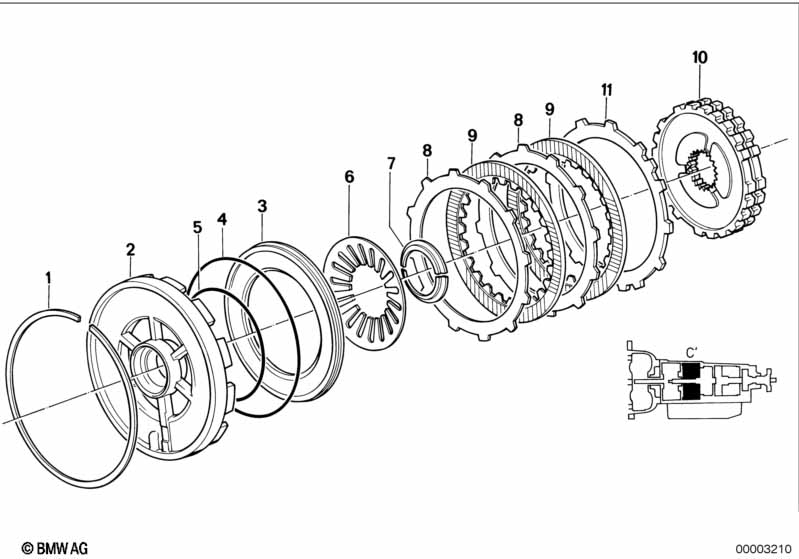

This ZF 4hp22/24 brake clutch C' technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Snap ring | 1 | 24231640101 | $6.81 | ENDED | Shop at ECS Tuning | ||||
| 02 | Center plate | 1 | 24231217142 | $90.12 | ENDED | Shop at ECS Tuning | ||||
| 03 | Piston | 1 | 24231209813 | $68.85 | ENDED | Shop at ECS Tuning | ||||
| 04 | O-ring | 1 | 24231218761 | $14.71 | Shop at ECS Tuning | |||||
| 05 | O-ring | 1 | 24311219062 | $3.13 | Shop at ECS Tuning | |||||
| 06 | Diaphragm spring | 1 | 24231205945 | $11.44 | Shop at ECS Tuning | |||||
| 07 | Supporting ring | 1 | 24231205946 | $1.89 | ENDED | Shop at ECS Tuning | ||||
| 08 | Outer disc | 2 | 24231205935 | $20.51 | Shop at ECS Tuning | |||||
| 09 | Clutch disc | 2 | 24231215770 | $12.49 | Shop at ECS Tuning | |||||
| 10 | Freewheel 2nd gear | 1 | 24231205948 | $337.10 | Shop at ECS Tuning | |||||
| 11 | Disc | 1 | 24231205937 | $27.82 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
