ZF 4hp22/24 brake clutch D for BMW 3 Series E30 320i (1992)

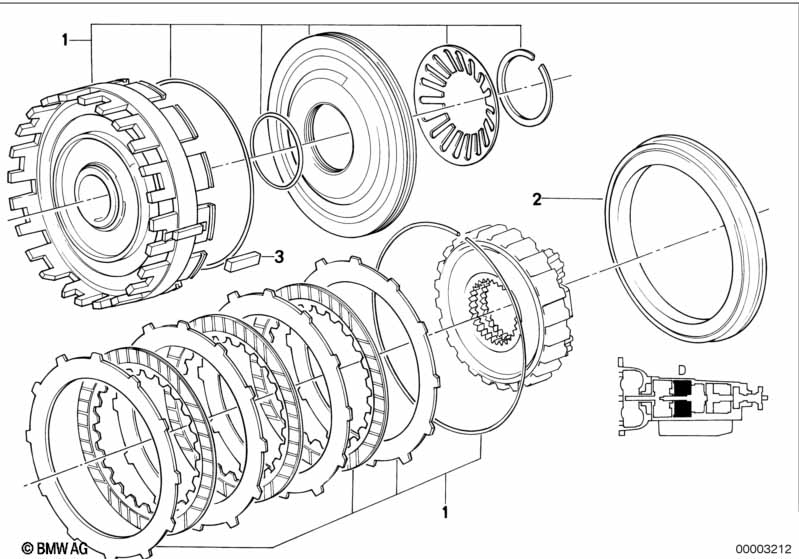

This ZF 4hp22/24 brake clutch D technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clutch | 1 | 24231219447 | $299.54 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO EH-CONTROL | ||||||||||
| 01 | Clutch | 1 | 24231421075 | ENDED | Shop at ECS Tuning | |||||
| 02 | backup ring | 1 | 24231215425 | $41.67 | ENDED | Shop at ECS Tuning | ||||
| 03 | Spring | 2 | 24231206105 | $1.13 | ENDED | Shop at ECS Tuning | ||||
