Control unit EGS, programmed for BMW 3 Series E36 316i (1994)

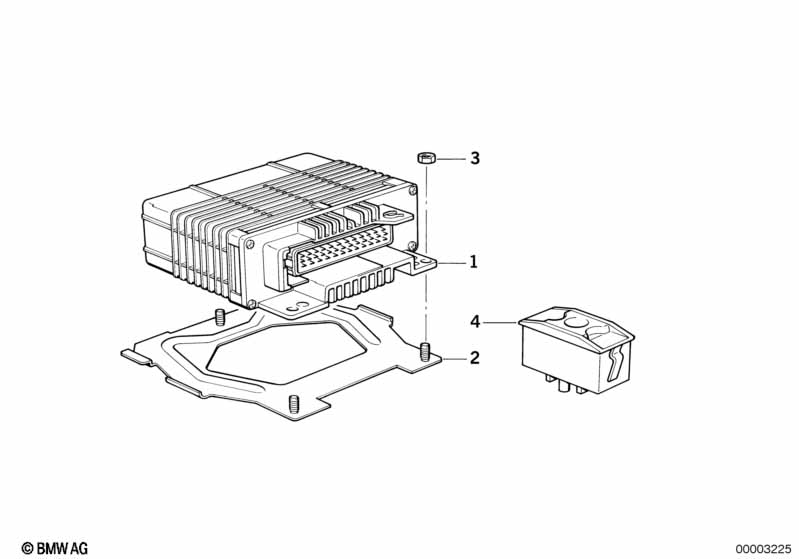

This Control unit EGS, programmed technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A4S 310R A4S 270R |
|||||||||
| 01 | AT-EGS control unit | CODE: FJ | 1 | 24611219101 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bracket | 1 | 24611218514 | $5.61 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex nut with plate | M5 | 3 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 316i Control unit EGS, programmed?
- This technical diagram illustrates the Control unit EGS, programmed within the Automatic transmission group for the 3 Series E36 316i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the AT-EGS control unit (Part #24611219101).
- Which models use the hardware listed in this Control unit EGS, programmed?
- The hardware and components featured in the Control unit EGS, programmed are specific to the 3 Series E36 316i produced during 1994. These technical specifications ensure that parts like the AT-EGS control unit (24611219101) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit EGS, programmed assembly?
- Each item in the Control unit EGS, programmed corresponds to the numbered list below the illustration. For the 3 Series E36 316i, you can identify the AT-EGS control unit by locating its position on the schematic, which then links to the official BMW part number 24611219101 for the Automatic transmission section.
