Gearbox mounting parts for BMW 3 Series E36 328i (1998)

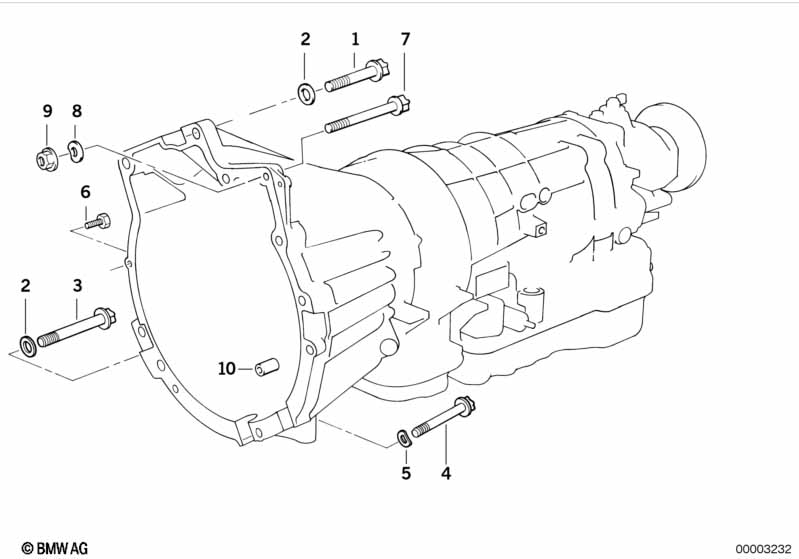

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A5S 300J | |||||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Torx bolt | M12X50-8.8-ZNS3 | 2 | 23001222891 | $1.32 | Shop at ECS Tuning | ||||
| 02 | Washer | 12-200 HV-ZNS3 | 4 | 07119906063 | Shop at ECS Tuning | |||||
| 03 | Torx bolt | M12X75 | 2 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 04 | ASA-Bolt | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X16-8.8-ZNS | 1 | 07119913015 | $0.60 | Shop at ECS Tuning | ||||
| 07 | Torx bolt | M10X65-8.8-ZNS3 | 2 | 07129904681 | $1.64 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B10-ZNS3 | 2 | 09/1999 | 07119904463 | Shop at ECS Tuning | ||||
| 08 | Washer | D=10MM | 2 | 07119904201 | $1.02 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M10 | 2 | 07119907088 | Shop at ECS Tuning | |||||
| 10 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
