A5S310Z brake clutch D/g for BMW 7 Series E38 730i (1996)

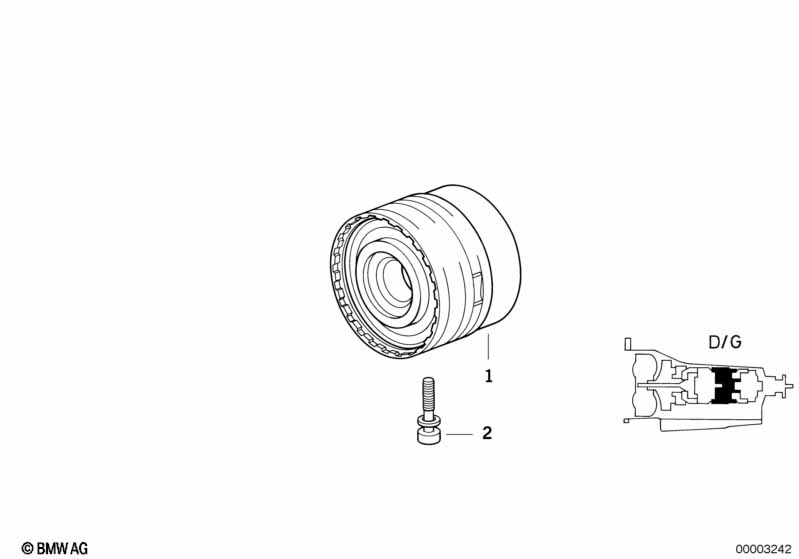

This A5S310Z brake clutch D/g technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake D/g | 1 | 24221421360 | $993.24 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of adjusting plates | 1 | 24271421722 | $69.13 | ENDED | Shop at ECS Tuning | ||||
| -- | Set of adjusting plates | 1 | 24271421791 | $51.43 | Shop at ECS Tuning | |||||
| 02 | Torx bolt | 3 | 24231219513 | $2.23 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 730i A5S310Z brake clutch D/g?
- This technical diagram illustrates the A5S310Z brake clutch D/g within the Automatic transmission group for the 7 Series E38 730i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Brake D/g (Part #24221421360).
- Which models use the hardware listed in this A5S310Z brake clutch D/g?
- The hardware and components featured in the A5S310Z brake clutch D/g are specific to the 7 Series E38 730i produced during 1996. These technical specifications ensure that parts like the Brake D/g (24221421360) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the A5S310Z brake clutch D/g assembly?
- Each item in the A5S310Z brake clutch D/g corresponds to the numbered list below the illustration. For the 7 Series E38 730i, you can identify the Brake D/g by locating its position on the schematic, which then links to the official BMW part number 24221421360 for the Automatic transmission section.
