A5S560Z planet wheel set I for BMW 7 Series E38 740i (1996)

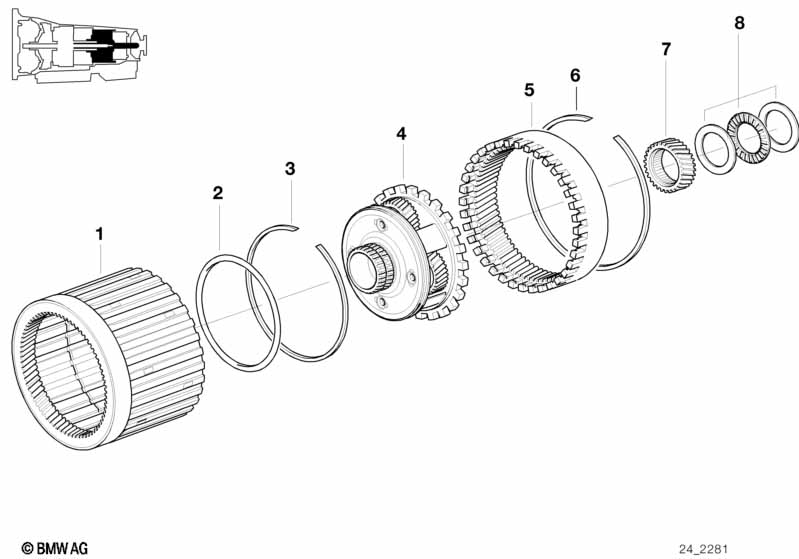

This A5S560Z planet wheel set I technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hollow gear wheel I | 1 | 24221421546 | $937.44 | ENDED | Shop at ECS Tuning | ||||
| 02 | O-ring | 1 | 24221421552 | $5.17 | Shop at ECS Tuning | |||||
| 03 | Snap ring | 1 | 24221421545 | $2.81 | ENDED | Shop at ECS Tuning | ||||
| 04 | Planet wheel carrier I | 1 | 24221421542 | $1074.15 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of adjusting plates | 1 | 24231421555 | $44.70 | Shop at ECS Tuning | |||||
| 05 | Hollow gear wheel II | 1 | 24221421544 | $229.90 | ENDED | Shop at ECS Tuning | ||||
| 06 | Snap ring | 1 | 24221421547 | $4.16 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sun gear | 1 | 24221421548 | $225.43 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of adjusting plates | 1 | 24231421555 | $44.70 | Shop at ECS Tuning | |||||
| 08 | AX bearing | 1 | 24221421549 | $14.94 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of adjusting plates | 1 | 24231421555 | $44.70 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740i A5S560Z planet wheel set I?
- This technical diagram illustrates the A5S560Z planet wheel set I within the Automatic transmission group for the 7 Series E38 740i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Hollow gear wheel I (Part #24221421546).
- Which models use the hardware listed in this A5S560Z planet wheel set I?
- The hardware and components featured in the A5S560Z planet wheel set I are specific to the 7 Series E38 740i produced during 1996. These technical specifications ensure that parts like the Hollow gear wheel I (24221421546) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the A5S560Z planet wheel set I assembly?
- Each item in the A5S560Z planet wheel set I corresponds to the numbered list below the illustration. For the 7 Series E38 740i, you can identify the Hollow gear wheel I by locating its position on the schematic, which then links to the official BMW part number 24221421546 for the Automatic transmission section.
