A5S560Z oil pan for BMW 5 Series E39 540i (1997)

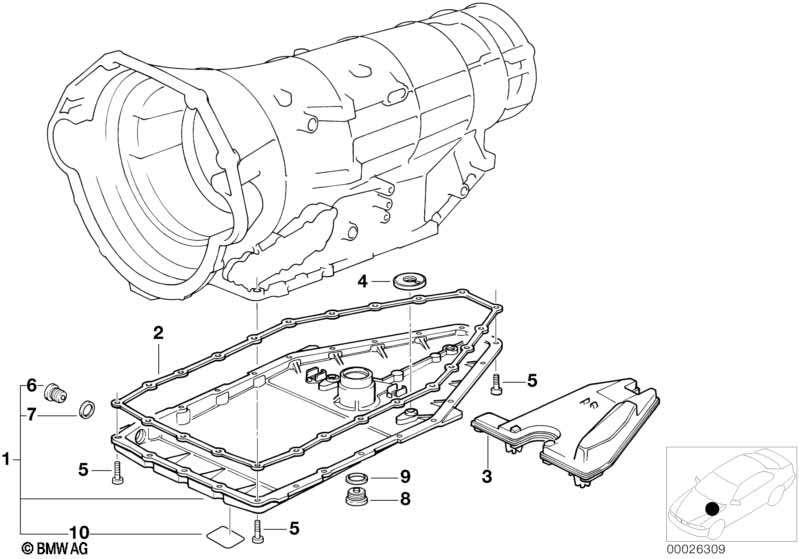

This A5S560Z oil pan technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 24111422146 | $279.32 | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 1 | 24111421140 | $17.54 | Shop at ECS Tuning | |||||
| 03 | Oil carrier | 1 | 24111421209 | $98.16 | Shop at ECS Tuning | |||||
| 04 | Magnet | 1 | 24111421208 | $15.36 | Shop at ECS Tuning | |||||
| 05 | Torx bolt | M6X25 | X | 24111421207 | $1.87 | Shop at ECS Tuning | ||||
| 06 | Screw Plug With Gasket Ring | M24X1,5 | 1 | 24111421517 | $9.74 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | A24X29 | 1 | 24111421899 | $1.04 | Shop at ECS Tuning | ||||
| 08 | Screw plug | M30X1,5 | 1 | 24117571201 | $7.17 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A30X36-AL | 1 | 24111219126 | $0.71 | Shop at ECS Tuning | ||||
| 10 | Stick-on label | 1 | 24111423621 | $2.17 | Shop at ECS Tuning |
