A5S310Z housing with mounting parts for BMW 5 Series E39 523i (1998)

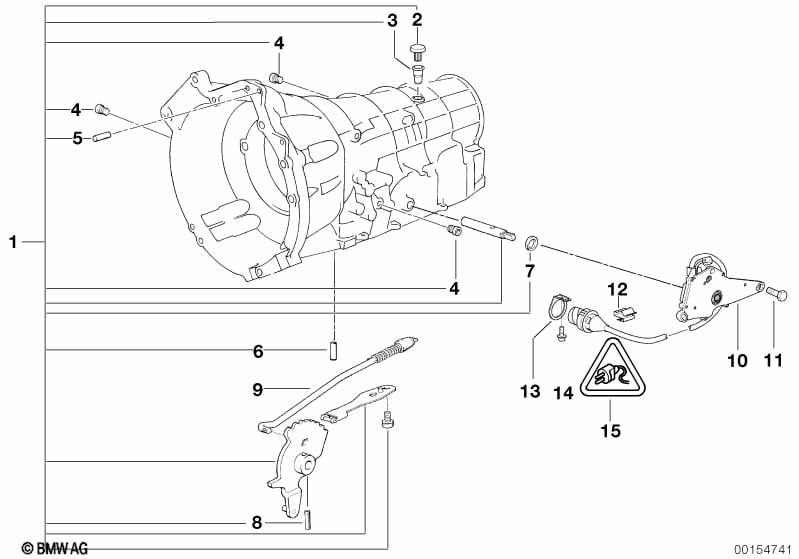

This A5S310Z housing with mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission housing | 1 | 09/1998 | 24101422628 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of adjusting plates | 1 | 09/1998 | 24271421722 | $69.13 | ENDED | Shop at ECS Tuning | |||
| -- | Set of adjusting plates | 1 | 09/1998 | 24271421791 | $51.43 | Shop at ECS Tuning | ||||
| 02 | Vent cover | 1 | 09/1998 | 24101422142 | $1.95 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Vent pipe | 1 | 09/1998 | 24101422141 | $5.93 | Shop at ECS Tuning | ||||
| 03 | Vent pipe | 1 | 09/1998 | 24101422141 | $5.93 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Vent cover | 1 | 09/1998 | 24101422142 | $1.95 | Shop at ECS Tuning | ||||
| 04 | Screw Plug With Gasket Ring | M10X1 | 2 | 09/1998 | 24117552351 | $4.60 | Shop at ECS Tuning | |||
| 05 | Dowel pin | 8M6X24 | 1 | 09/1998 | 24411218031 | $2.38 | Shop at ECS Tuning | |||
| 06 | Dowel pin | 6M6X16 | 1 | 09/1998 | 24101219418 | $1.38 | Shop at ECS Tuning | |||
| 07 | Shaft seal | 10X18X5 | 1 | 09/1998 | 24147571213 | $5.20 | Shop at ECS Tuning | |||
| 09 | Connection rod | 1 | 09/1998 | 24521422246 | $22.89 | Shop at ECS Tuning | ||||
| 10 | Position switch | 1 | 09/1998 | 24107507818 | $288.45 | +core | Shop at ECS Tuning | |||
| 11 | Hexagon bolt | M6X20 | 2 | 09/1998 | 24105A67389 | Shop at ECS Tuning | ||||
| 12 | Cable clamp | 1 | 09/1998 | 24101421795 | $0.85 | Shop at ECS Tuning | ||||
| 13 | Bracket | 1 | 09/1998 | 24101422296 | Shop at ECS Tuning | |||||
| 14 | Fillister-head screw | M8X20 | 1 | 09/1998 | 24101422619 | ENDED | Shop at ECS Tuning | |||
| 15 | Plug housing | 10-POL | 1 | 09/1998 | 12521740615 | $5.52 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Grommet | 1 | 09/1998 | 12521703522 | $3.37 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
