A5S440Z attach.parts/ packings for BMW 5 Series E39 540i (1997)

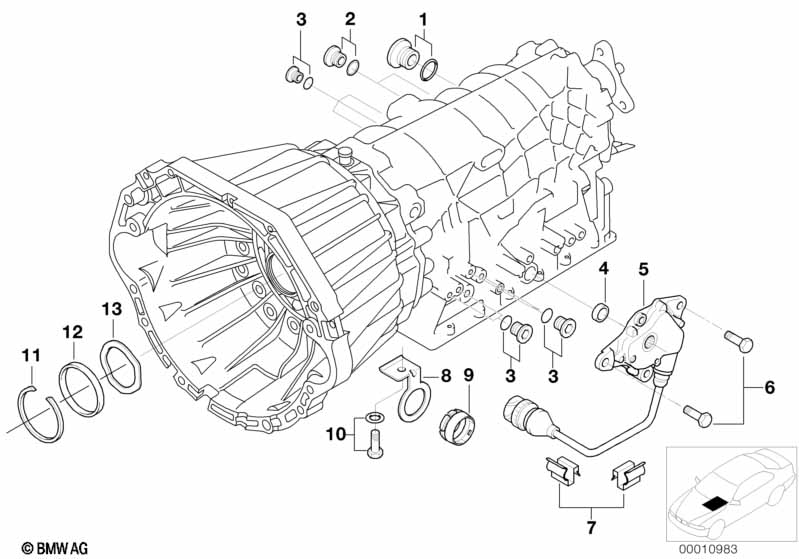

This A5S440Z attach.parts/ packings technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Screw Plug With Gasket Ring | M18X1,5 | 1 | 24117552349 | $7.65 | Shop at ECS Tuning | ||||
| 02 | Screw Plug With Gasket Ring | M14X1,5 | 2 | 24007571205 | $6.30 | +core | Shop at ECS Tuning | |||
| 03 | Screw Plug With Gasket Ring | M10X1 | 7 | 24117552351 | $4.60 | Shop at ECS Tuning | ||||
| 04 | Shaft seal | 10X18X5 | 2 | 24147571213 | $5.20 | Shop at ECS Tuning | ||||
| 05 | Position switch | 1 | 24107512755 | $277.78 | +core | Shop at ECS Tuning | ||||
| 06 | Hexagon bolt | M6X20 | 2 | 24105A67389 | Shop at ECS Tuning | |||||
| 07 | Cable clamp | 4 | 24101422677 | $2.03 | Shop at ECS Tuning | |||||
| 08 | Holder | 1 | 24101422524 | $3.25 | Shop at ECS Tuning | |||||
| 09 | Connecting sleeve | 1 | 24101423242 | $1.68 | Shop at ECS Tuning | |||||
| 10 | Hexagon bolt | M6X20 | 1 | 24105A67389 | Shop at ECS Tuning | |||||
| 11 | Snap ring | 1 | 24311421070 | $2.09 | Shop at ECS Tuning | |||||
| 12 | Shaft seal | 40X52X7 | 1 | 24311422671 | $11.45 | Shop at ECS Tuning | ||||
| 13 | Corrugated washer | 1 | 24311421071 | $4.13 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 540i A5S440Z attach.parts/ packings?
- This technical diagram illustrates the A5S440Z attach.parts/ packings within the Automatic transmission group for the 5 Series E39 540i produced during 1997. It provides a detailed exploded view of the components, identifying key parts such as the Screw Plug With Gasket Ring (Part #24117552349).
- Which models use the hardware listed in this A5S440Z attach.parts/ packings?
- The hardware and components featured in the A5S440Z attach.parts/ packings are specific to the 5 Series E39 540i produced during 1997. These technical specifications ensure that parts like the Screw Plug With Gasket Ring (24117552349) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the A5S440Z attach.parts/ packings assembly?
- Each item in the A5S440Z attach.parts/ packings corresponds to the numbered list below the illustration. For the 5 Series E39 540i, you can identify the Screw Plug With Gasket Ring by locating its position on the schematic, which then links to the official BMW part number 24117552349 for the Automatic transmission section.
