ZF 4hp22/24 planet wheel sets for BMW 7 Series E32 735i (1992)

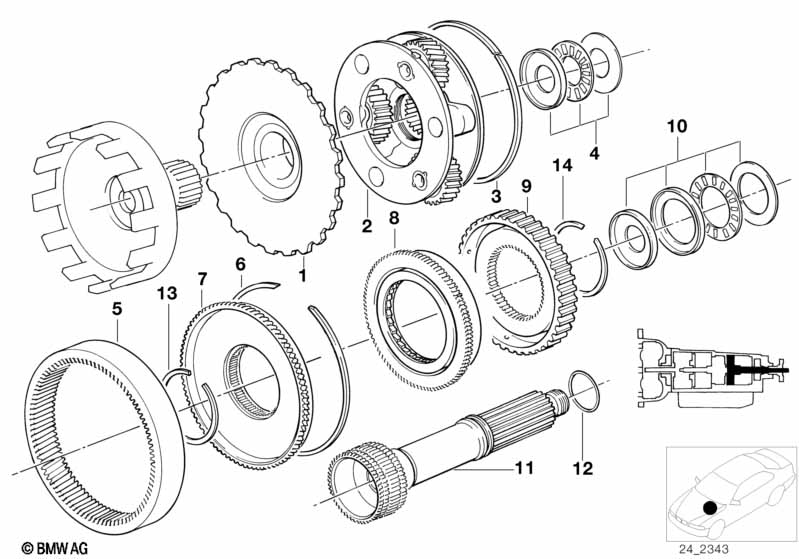

This ZF 4hp22/24 planet wheel sets technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 09 | Disc carrier | 1 | 24231217163 | $70.69 | ENDED | Shop at ECS Tuning | ||||
| 10 | AX bearing | 1 | 24231215442 | $11.35 | Shop at ECS Tuning | |||||
| 11 | Output shaft | 1 | 24211216254 | $367.16 | ENDED | Shop at ECS Tuning | ||||
| 12 | O-ring | 25,12X1,78 | 1 | 24211217132 | $0.97 | Shop at ECS Tuning | ||||
| 13 | Snap ring | 1 | 24231215339 | $0.66 | ENDED | Shop at ECS Tuning | ||||
| 14 | Snap ring | 1 | 24231215437 | $0.98 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 735i ZF 4hp22/24 planet wheel sets?
- This technical diagram illustrates the ZF 4hp22/24 planet wheel sets within the Automatic transmission group for the 7 Series E32 735i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Disc carrier (Part #24231217163).
- Which models use the hardware listed in this ZF 4hp22/24 planet wheel sets?
- The hardware and components featured in the ZF 4hp22/24 planet wheel sets are specific to the 7 Series E32 735i produced during 1992. These technical specifications ensure that parts like the Disc carrier (24231217163) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 4hp22/24 planet wheel sets assembly?
- Each item in the ZF 4hp22/24 planet wheel sets corresponds to the numbered list below the illustration. For the 7 Series E32 735i, you can identify the Disc carrier by locating its position on the schematic, which then links to the official BMW part number 24231217163 for the Automatic transmission section.
