ZF 4hp22/24-EH output for BMW 3 Series E30 320i (1992)

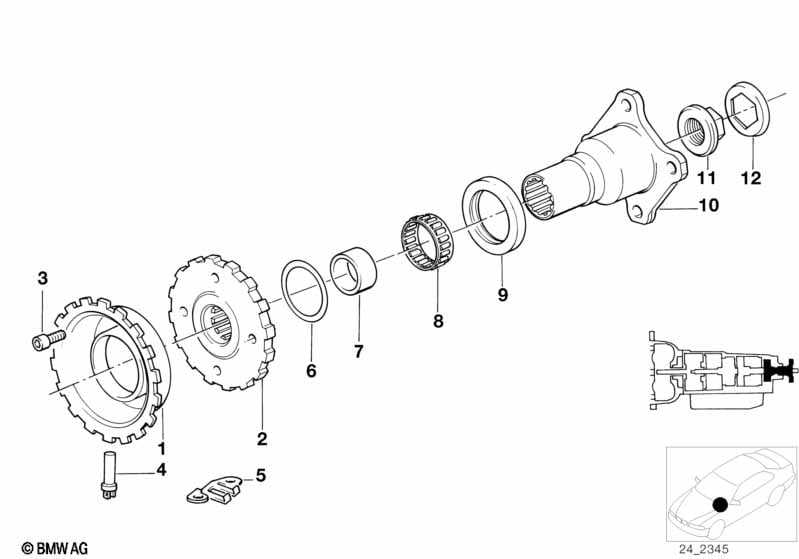

This ZF 4hp22/24-EH output technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO EH-CONTROL | ||||||||||
| 01 | Impulse sending wheel | 1 | 24531215593 | $16.37 | ENDED | Shop at ECS Tuning | ||||
| 02 | Parking lock wheel | 1 | 24531215592 | ENDED | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | M6X10 | 2 | 24531215594 | ENDED | Shop at ECS Tuning | ||||
| 04 | Pulse generator | 1 | 24341218551 | $50.64 | +core | Shop at ECS Tuning | ||||
| 05 | Holder | 1 | 24341215768 | $3.95 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shim | 1 | 24211215784 | $1.65 | Shop at ECS Tuning | |||||
| 07 | Inner ring | 1 | 24211215730 | $40.73 | Shop at ECS Tuning | |||||
| 08 | Needle sleeve | 35X42X12 | 1 | 24111218008 | $14.67 | Shop at ECS Tuning | ||||

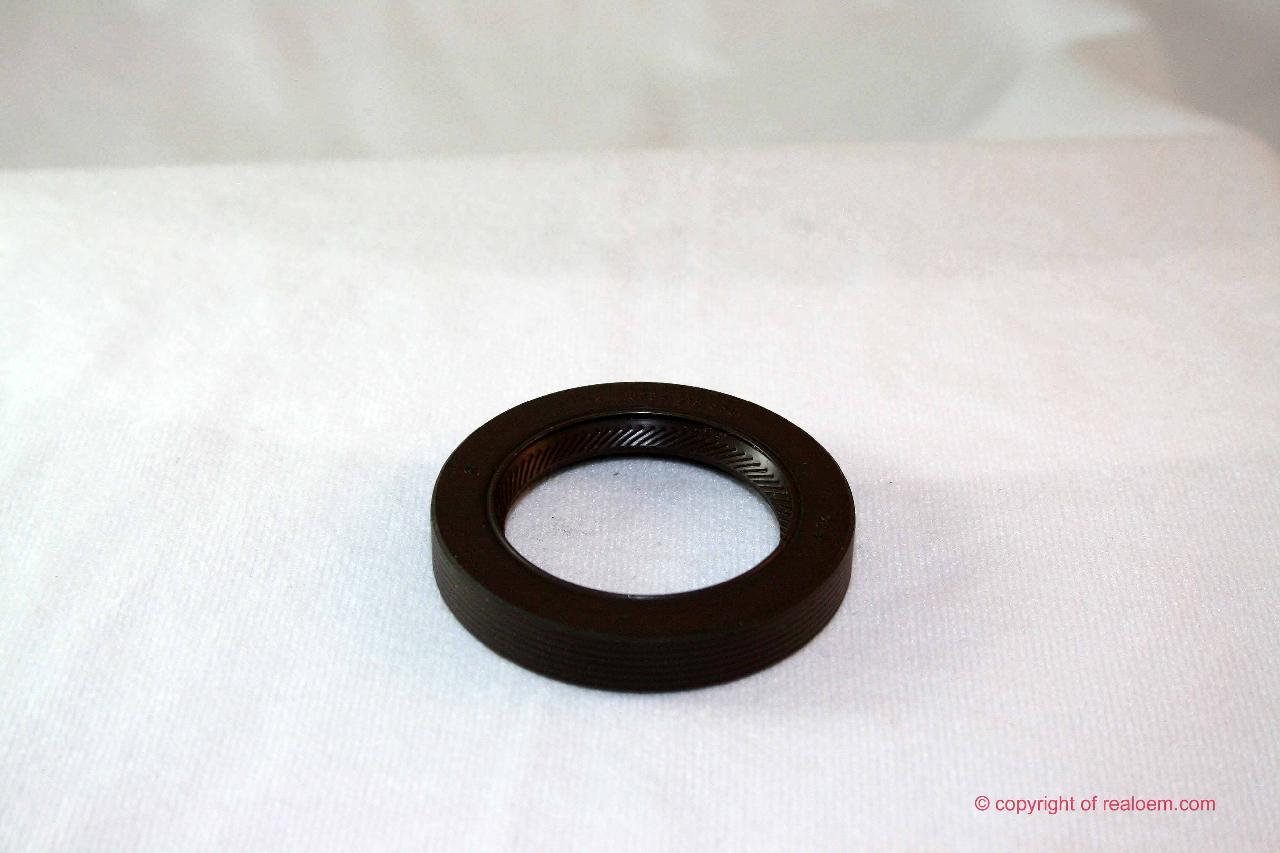

| 09 | Shaft seal | 40X58X10 | 1 | 24111218009 | $21.95 | Shop at ECS Tuning | ||||
| 10 | Output flange | 1 | 24211215731 | $210.18 | Shop at ECS Tuning | |||||
| 11 | Collar nut | M20X1,5 | 1 | 23221201331 | $6.99 | Shop at ECS Tuning | ||||
| 12 | Securing plate | 1 | 23221201330 | $2.33 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
