ZF 4hp22/24-h control unit+attach.parts for BMW 3 Series E30 320i (1992)

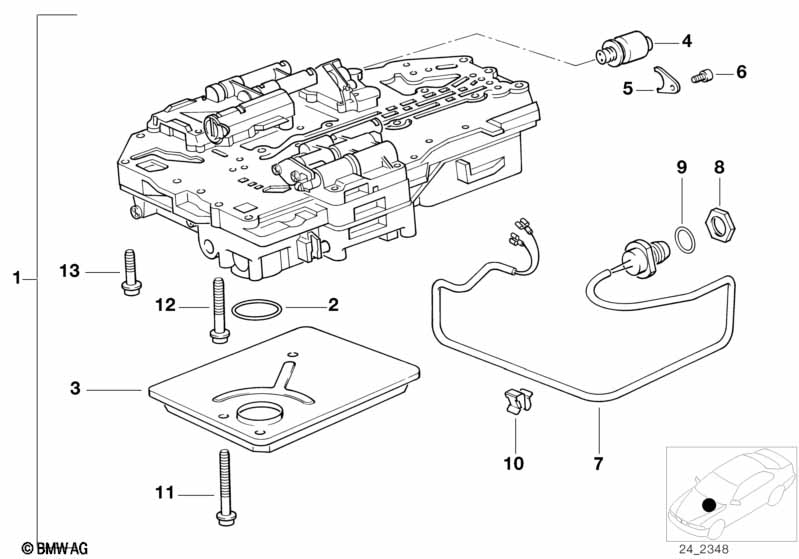

This ZF 4hp22/24-h control unit+attach.parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit | 1 | 09/1988 | 24351218329 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Control unit | 1 | 12/1988 | 24341218633 | ENDED | Shop at ECS Tuning | ||||
| 02 | O-ring | 1 | 09/1989 | 24311218570 | $1.59 | Shop at ECS Tuning | ||||
| 03 | Oil strainer | 1 | 09/1989 | 24311218550 | $36.30 | Shop at ECS Tuning | ||||
| 04 | Solenoid valve (SOLV) | 1 | 24341215599 | $313.30 | Shop at ECS Tuning | |||||
| 05 | Bracket | 1 | 24341217065 | $1.33 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | M5X12 | 1 | 24341215605 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cable harness | 1 | 24631218956 | $117.18 | ENDED | Shop at ECS Tuning | ||||
| 08 | Nut | 1 | 24341218624 | $9.70 | Shop at ECS Tuning | |||||
| 09 | O-ring | 1 | 24311218572 | $3.13 | Shop at ECS Tuning | |||||
| 10 | Cable clamp | 5 | 24351215609 | $1.60 | ENDED | Shop at ECS Tuning | ||||
| 11 | Fillister-head screw | M6X65 | 5 | 24341215492 | $2.09 | Shop at ECS Tuning | ||||
| 12 | Torx bolt | M6X60 | 3 | 24341422672 | $2.66 | Shop at ECS Tuning | ||||
| 13 | Torx bolt | M6X30 | 6 | 24341421078 | $1.61 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
