Gearbox mounting parts for BMW 7 Series E38 740iLP (2001)

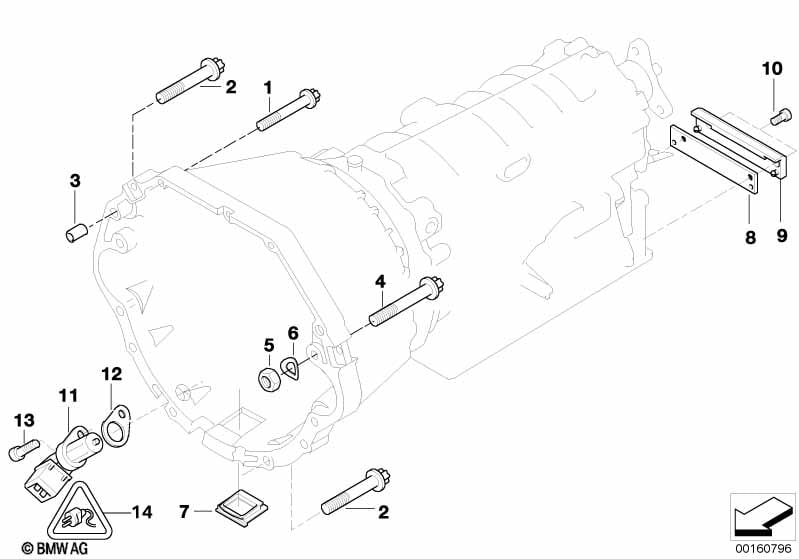

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iLP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ASA-Bolt | M8X50-8.8-ZNS3 | 2 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | M10X55-8.8 ZNS3 | 8 | 23001222888 | $1.13 | Shop at ECS Tuning | ||||
| 03 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Torx bolt | M10X60 | 2 | 12411434052 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M10 | 2 | 07119907088 | Shop at ECS Tuning | |||||
| 06 | Washer | D=10MM | 2 | 07119904201 | $1.02 | Shop at ECS Tuning | ||||
| 07 | Cap | 1 | 24001422960 | $2.67 | Shop at ECS Tuning | |||||
| 08 | Impact plate | 1 | 24501422964 | $5.78 | Shop at ECS Tuning | |||||
| 09 | Rubber buffer | 1 | 24501422965 | $13.60 | Shop at ECS Tuning | |||||
| 10 | Fillister-head screw | M8X18 | 2 | 07119901487 | $0.30 | Shop at ECS Tuning | ||||
| 11 | Pulse generator, crankshaft | 1 | 03/2000 | 12141433264 | $116.05 | Shop at ECS Tuning | ||||
| 12 | Intermediate plate | 1 | 12141742693 | $2.48 | Shop at ECS Tuning | |||||
| 13 | Fillister-head screw | M6X16ZNNIV SI | 1 | 13627545338 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Socket housing | 2 POL. | 1 | 12521427221 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 1 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
