A5S300J selector rod/trans. switch for BMW 5 Series E39 528i (2000)

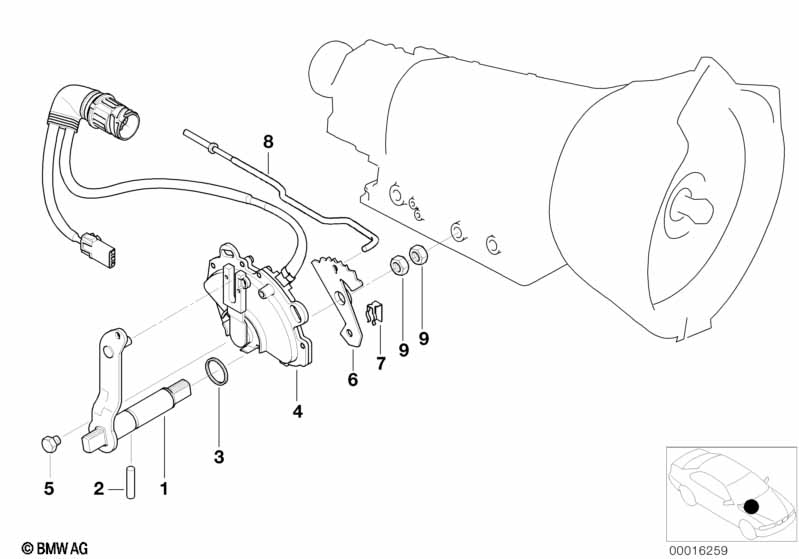

This A5S300J selector rod/trans. switch technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Selector rod | 1 | 24221423110 | ENDED | Shop at ECS Tuning | |||||
| 02 | Securing pin | 1 | 24521423111 | ENDED | Shop at ECS Tuning | |||||
| 03 | Shaft seal | 1 | 24521219551 | Shop at ECS Tuning | ||||||
| 04 | Position switch | 1 | 24351423104 | $351.67 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M5X0,8 | 1 | 24111423105 | ENDED | Shop at ECS Tuning | ||||
| 06 | Locking disc | 1 | 24521422333 | ENDED | Shop at ECS Tuning | |||||
| 07 | Clip | 1 | 24521422334 | ENDED | Shop at ECS Tuning | |||||
| 08 | Selector rod | 1 | 24521423835 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hex nut | 2 | 24521422336 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
