A5s300j mounting parts control unit for BMW 5 Series E39 523i (2000)

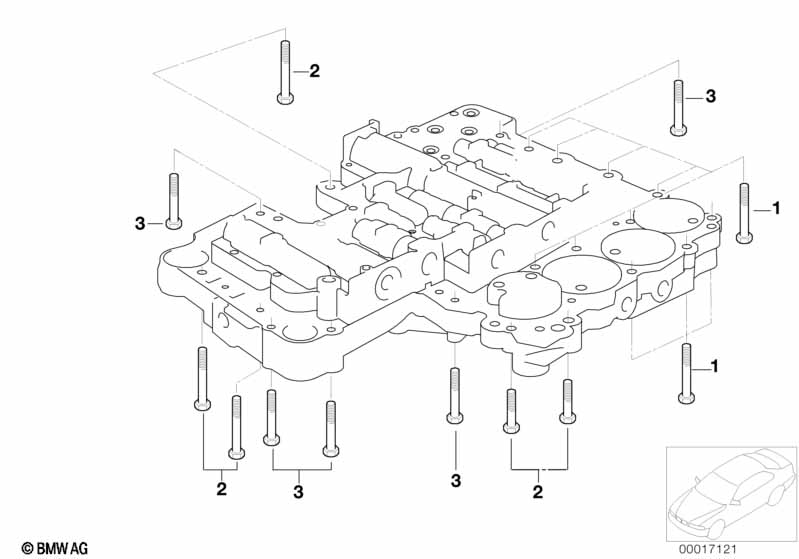

This A5s300j mounting parts control unit technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Hex bolt | M6X45 | 10 | 24341422217 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M6X33 | 5 | 24341422219 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X40 | 5 | 24341422218 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 523i A5s300j mounting parts control unit?
- This technical diagram illustrates the A5s300j mounting parts control unit within the Automatic transmission group for the 5 Series E39 523i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #24341422217).
- Which models use the hardware listed in this A5s300j mounting parts control unit?
- The hardware and components featured in the A5s300j mounting parts control unit are specific to the 5 Series E39 523i produced during 2000. These technical specifications ensure that parts like the Hex bolt (24341422217) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the A5s300j mounting parts control unit assembly?
- Each item in the A5s300j mounting parts control unit corresponds to the numbered list below the illustration. For the 5 Series E39 523i, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 24341422217 for the Automatic transmission section.
