Automatic transmission for BMW 1502-2002tii 2002 (1970)

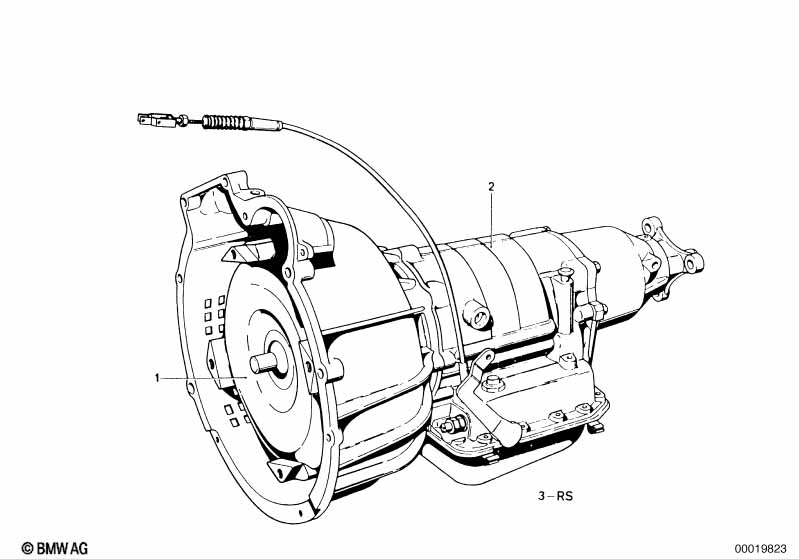

This Automatic transmission technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ZF 3HP12 | |||||||||
| 01 | Exch. torque converter | D=21MM | 1 | 03/1966 | 07/1976 | 24400770960 | ENDED | Shop at ECS Tuning | ||
| Schema P-R-0-A-2-1 | ||||||||||
| 02 | Exch. automatic transmission | 3HP12 | 1 | 03/1966 | 07/1976 | 24001204351 | ENDED | Shop at ECS Tuning | ||
| 03 | Gasket set f automatik transmission "AF" | 3HP12 | 1 | 24001201748 | ENDED | Shop at ECS Tuning | ||||
