ZF 3hp12 mounting parts/suspension for BMW 1502-2002tii 2002 (1974)

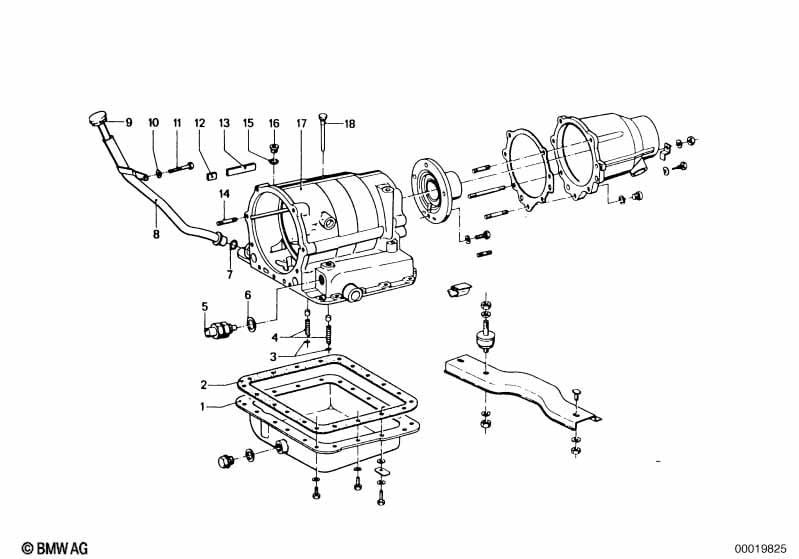

This ZF 3hp12 mounting parts/suspension technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 24111606172 | $803.52 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 1 | 24111606171 | $17.79 | Shop at ECS Tuning | |||||
| 03 | Lock Ring | 10X1 | 2 | 24111218535 | $1.02 | Shop at ECS Tuning | ||||
| 04 | Compression spring | D=0,8/L=26,6 | 2 | 24341606170 | $6.09 | Shop at ECS Tuning | ||||
| 05 | Switch | 1 | 24351201567 | $34.59 | Shop at ECS Tuning | |||||
| 06 | Gasket ring | X | 24111606162 | ENDED | Shop at ECS Tuning | |||||
| 06 | Gasket ring | X | 24111606163 | ENDED | Shop at ECS Tuning | |||||
| 06 | Gasket ring | X | 24111606164 | ENDED | Shop at ECS Tuning | |||||
| 06 | Gasket ring | 1,600MM | X | 24231200165 | $0.56 | ENDED | Shop at ECS Tuning | |||
| 06 | Gasket ring | 1,400MM | X | 24231200166 | $1.10 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 0,800MM | X | 24231201568 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 1,000MM | X | 24231201569 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 2,000MM | X | 24231203735 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket ring asbesto-free | 2,200MM | X | 24231203736 | $1.42 | Shop at ECS Tuning | ||||
| 07 | O-ring | 17X2,5 | 1 | 24111602108 | ENDED | Shop at ECS Tuning | ||||
| 07 | O-ring | 18X3,5 | 1 | 24411202912 | $3.46 | ENDED | Shop at ECS Tuning | |||
| 08 | Filler pipe | 1 | 24111602100 | ENDED | Shop at ECS Tuning | |||||
| 09 | Dipstick | 1 | 24111200867 | ENDED | Shop at ECS Tuning | |||||
| 10 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X40-ZNNIV SI | 1 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 12 | Spring | 2 | 24111606174 | ENDED | Shop at ECS Tuning | |||||
| 13 | Spring | 2 | 24111606175 | ENDED | Shop at ECS Tuning | |||||
| 14 | Stud bolt | M8X30-ZNS3 | 12 | 07129906148 | $0.80 | Shop at ECS Tuning | ||||
| 15 | Gasket ring | A10X13,5-CU | 2 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 16 | Screw plug | M10X1-ST-ZNS3 | 2 | 07119904393 | $1.89 | Shop at ECS Tuning | ||||
| 17 | Transmission housing | 1 | 24111201052 | ENDED | Shop at ECS Tuning | |||||
| 17 | Transmission housing | 1 | 24111203723 | ENDED | Shop at ECS Tuning | |||||
| 18 | Ventilation valve | 1 | 24111201565 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
