ZF 3hp12 mounting parts/suspension for BMW 1502-2002tii 2002 (1970)

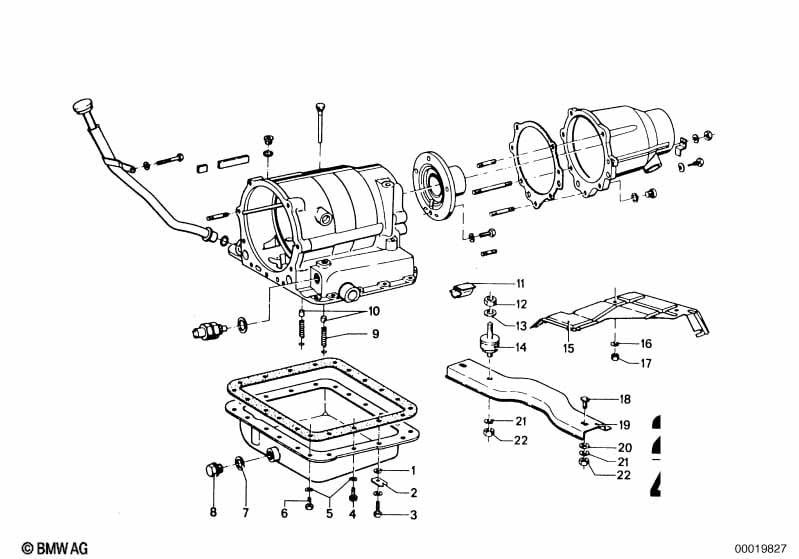

This ZF 3hp12 mounting parts/suspension technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Schema P-R-0-A-2-1 | ||||||||||
| 01 | Washer | 2 | 24351350795 | ENDED | Shop at ECS Tuning | |||||
| 02 | Shackle | 2 | 24351350794 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M6X18 | 2 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X12-8.8-ZNNIV | 17 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X10-8.8-ZNS3 | 1 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | 1 | 24111215097 | $1.64 | Shop at ECS Tuning | |||||
| 08 | Screw plug | AM18X1,5 | 1 | 07119919246 | $2.40 | ENDED | Shop at ECS Tuning | |||
| 09 | Compression spring | D=0,8/L=26,6 | 2 | 24341606170 | $6.09 | Shop at ECS Tuning | ||||
| 10 | Sleeve | 4 | 24341606168 | $4.39 | Shop at ECS Tuning | |||||
| 11 | Clamp | 2 | 07147202015 | Shop at ECS Tuning | ||||||
| 12 | Hex nut | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 13 | Washer | 10,5X25X3,5MM | 2 | 64521350824 | $2.67 | Shop at ECS Tuning | ||||
| 14 | Rubber Mounting | 1 | 24711790105 | $11.99 | Shop at ECS Tuning | |||||
| 15 | Heat resistant plate | 1 | 02/1969 | 07/1976 | 24711245526 | ENDED | Shop at ECS Tuning | |||
| 16 | Washer | 3 | 02/1969 | 07/1976 | 51481840109 | $0.57 | ENDED | Shop at ECS Tuning | ||
| 17 | Stop nut | 3 | 02/1969 | 07/1976 | 51481841216 | $0.38 | Shop at ECS Tuning | |||
| 18 | Square headed bolt | M8X18 | 2 | 23711130250 | $4.27 | Shop at ECS Tuning | ||||
| 19 | Cross member | 1 | 24711790100 | $8.04 | ENDED | Shop at ECS Tuning | ||||
| 20 | Washer | A8,4 | 2 | 24111690120 | $0.42 | Shop at ECS Tuning | ||||
| 21 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 22 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
