ZF 3HP12 Output/Speedometer drive for BMW 1502-2002tii 2002 (1971)

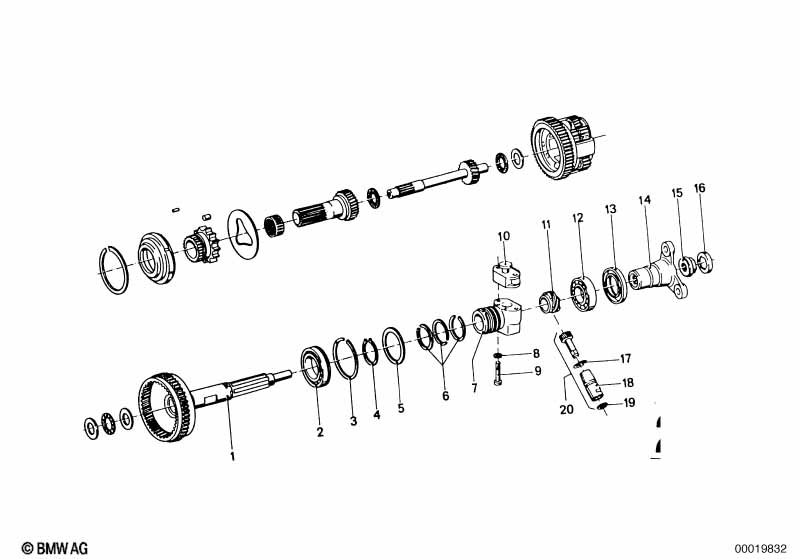

This ZF 3HP12 Output/Speedometer drive technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Output shaft | 1 | 24211201570 | ENDED | Shop at ECS Tuning | |||||
| 02 | Grooved ball bearing | 6207N | 1 | 03/1966 | 07/1976 | 07119981248 | ENDED | Shop at ECS Tuning | ||
| 03 | Snap ring | SP72 | 1 | 03/1966 | 07/1976 | 07119933305 | ENDED | Shop at ECS Tuning | ||
| 04 | Lock Ring | 1 | 03/1966 | 07/1976 | 24241630258 | ENDED | Shop at ECS Tuning | |||
| 05 | Shim | 56X72X0,1 | X | 03/1966 | 07/1976 | 24121630259 | ENDED | Shop at ECS Tuning | ||
| 05 | Shim | 56X72X0,3 | X | 03/1966 | 07/1976 | 24121630260 | ENDED | Shop at ECS Tuning | ||
| 06 | Rectangring | 40/36,3X2 | 3 | 07119933705 | ENDED | Shop at ECS Tuning | ||||
| 07 | Regulator hub | 1 | 24321200443 | ENDED | Shop at ECS Tuning | |||||
| 09 | Fillister-head screw | M6X40 | 2 | 07119919497 | ENDED | Shop at ECS Tuning | ||||
| 10 | Voltage regulator | 1 | 24321204376 | ENDED | Shop at ECS Tuning | |||||
| 10 | Voltage regulator | 1 | 24321204377 | ENDED | Shop at ECS Tuning | |||||
| 11 | Speedometer drive | 1 | 24211200394 | ENDED | Shop at ECS Tuning | |||||
| 12 | Grooved ball bearing | 35X62X14 | 1 | 07119981054 | $32.53 | ENDED | Shop at ECS Tuning | |||
| 13 | Shaft seal | 1 | 24121630281 | $21.63 | ENDED | Shop at ECS Tuning | ||||
| 14 | Drive flange | 10 MM | 1 | 24211201089 | ENDED | Shop at ECS Tuning | ||||
| 14 | Output flange | 12 MM | 1 | 03/1966 | 07/1976 | 24211203665 | ENDED | Shop at ECS Tuning | ||
| 15 | Collar nut | M20X1,5 | 1 | 23221201331 | $6.99 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Output flange | 12 MM | X | 24211203665 | ENDED | Shop at ECS Tuning | ||||
| 16 | Securing plate | 1 | 23221201330 | $2.33 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Output flange | 12 MM | X | 24211203665 | ENDED | Shop at ECS Tuning | ||||
| 17 | O-ring | 18 X 2,4 | 1 | 24278627913 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Output flange | 12 MM | X | 24211203665 | ENDED | Shop at ECS Tuning | ||||
| 19 | Shaft seal | 8X11,5X3 | 1 | 24211200139 | $16.96 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Output flange | 12 MM | X | 24211203665 | ENDED | Shop at ECS Tuning | ||||

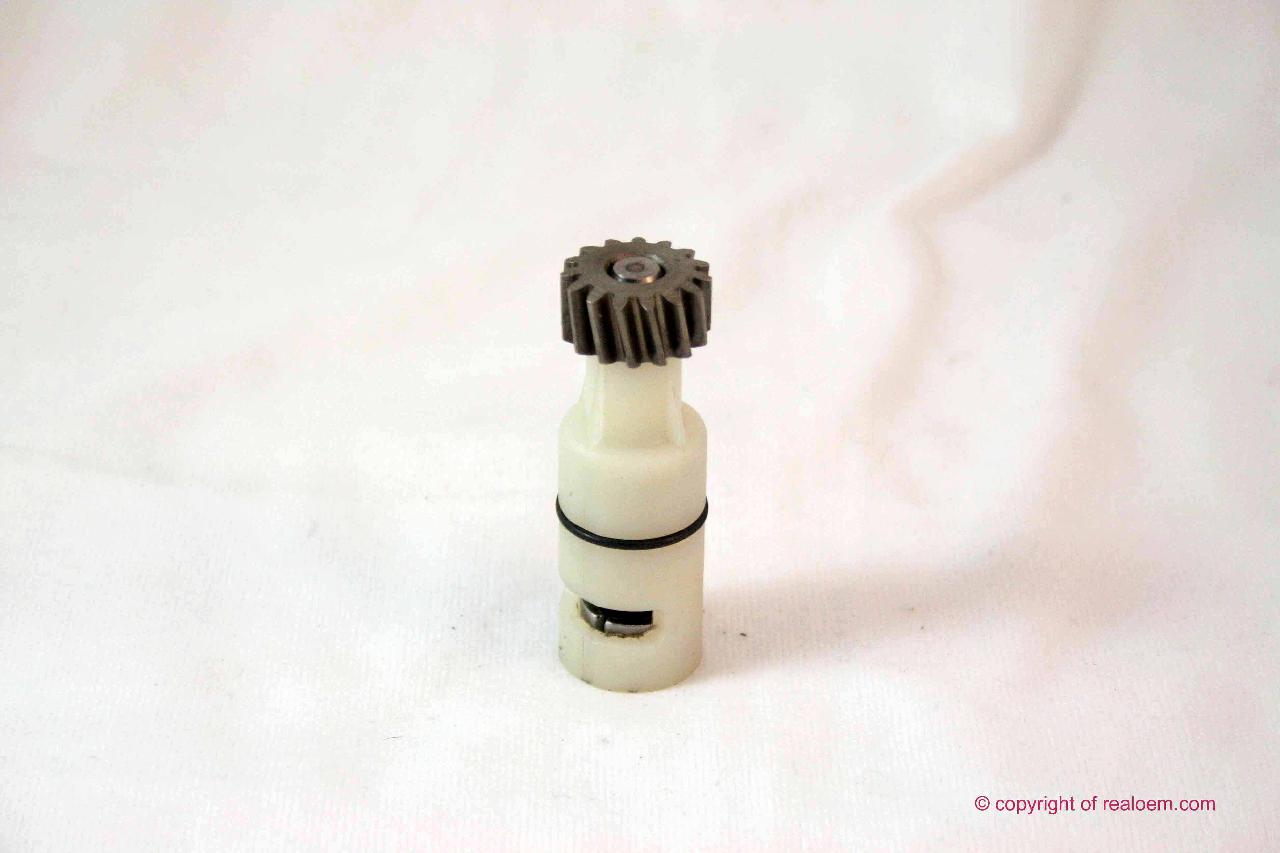

| 20 | Speedometer drive | 1 | 24211204137 | $92.61 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Output flange | 12 MM | X | 24211203665 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
