ZF 3hp12 brake clutch C/C'/D for BMW 1500-2000CS 1800 (1969)

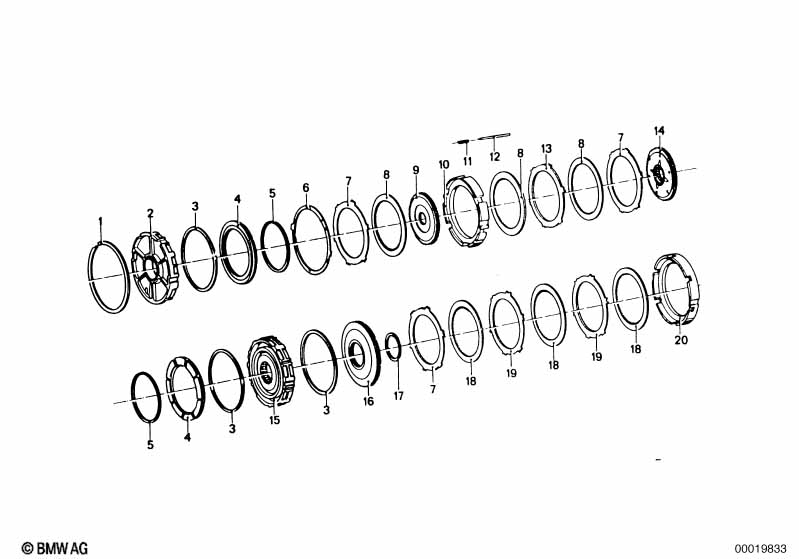

This ZF 3hp12 brake clutch C/C'/D technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Snap ring | 1 | 24231640101 | $6.81 | ENDED | Shop at ECS Tuning | ||||
| 02 | Ring | 1 | 24231640102 | ENDED | Shop at ECS Tuning | |||||
| 03 | Rectangring | 130X137X2 | 3 | 24231620120 | ENDED | Shop at ECS Tuning | ||||
| 04 | Piston | 2 | 24231640100 | ENDED | Shop at ECS Tuning | |||||
| 05 | Rectangring | 110X117X2 | 2 | 24231640103 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shim | 1,500MM | X | 24231640106 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shim | 1,200MM | X | 24231640107 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shim | 1,000MM | X | 24231640108 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shim | 0,800MM | X | 24231640109 | ENDED | Shop at ECS Tuning | ||||
| 07 | Outer disc | 3 | 24231201058 | $21.83 | ENDED | Shop at ECS Tuning | ||||
| 08 | Clutch disc | 3 | 24231205594 | $28.72 | ENDED | Shop at ECS Tuning | ||||
| 09 | Disc carrier | 1 | 24231204138 | $24.55 | ENDED | Shop at ECS Tuning | ||||
| 10 | Disc carrier | 1 | 24231201066 | $56.36 | ENDED | Shop at ECS Tuning | ||||
| 11 | Compression spring | 12 | 24231203738 | ENDED | Shop at ECS Tuning | |||||
| 12 | Pin | 6 | 24231640115 | ENDED | Shop at ECS Tuning | |||||
| 13 | Outer disc | 1 | 24231201067 | ENDED | Shop at ECS Tuning | |||||
| 14 | Free wheel | 1 | 24241201068 | ENDED | Shop at ECS Tuning | |||||
| 15 | Cylinder | 1 | 24239058747 | ENDED | Shop at ECS Tuning | |||||
| 16 | Piston | 1 | 24231200441 | ENDED | Shop at ECS Tuning | |||||
| 17 | Rectangring | 60X67X2 | 1 | 24231630278 | $12.28 | ENDED | Shop at ECS Tuning | |||
| 18 | Clutch disc | 3 | 24231205594 | $28.72 | ENDED | Shop at ECS Tuning | ||||
| 19 | Outer disc | 2 | 24231201069 | ENDED | Shop at ECS Tuning | |||||
| 20 | Outer disc carrier | 1 | 24211203746 | ENDED | Shop at ECS Tuning | |||||
| 20 | Outer disc | 1 | 24231202618 | ENDED | Shop at ECS Tuning |
