ZF 3hp12 gear shift/parking lock for BMW 1500-2000CS 2000C (1970)

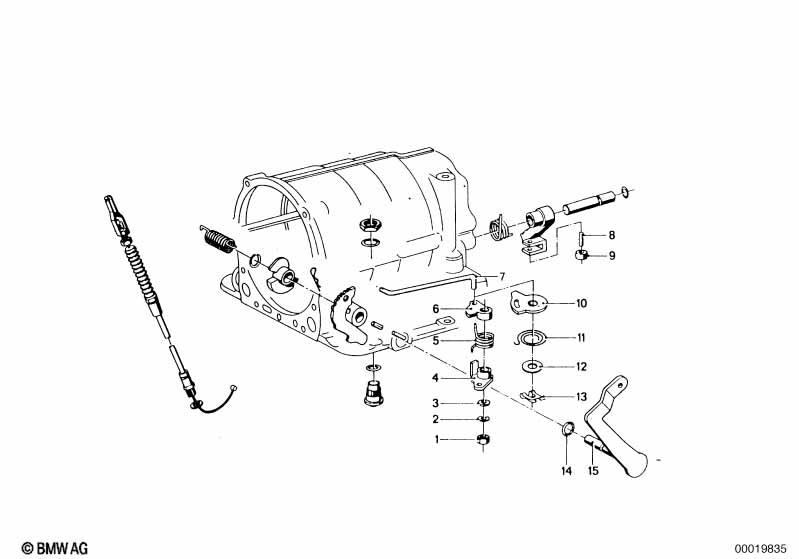

This ZF 3hp12 gear shift/parking lock technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000C. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Lever | 1 | 24341201098 | ENDED | Shop at ECS Tuning | |||||
| 05 | Spring | 1 | 24341201097 | ENDED | Shop at ECS Tuning | |||||
| 06 | Cam disc | 1 | 24341201096 | $6.92 | ENDED | Shop at ECS Tuning | ||||
| 07 | Connection rod | 1 | 24341201564 | ENDED | Shop at ECS Tuning | |||||
| 07 | Connection rod | 1 | 24341203731 | ENDED | Shop at ECS Tuning | |||||
| 08 | Rivet | 9X16 | 1 | 07119941660 | ENDED | Shop at ECS Tuning | ||||
| 09 | Roll pin | 1 | 24341666389 | ENDED | Shop at ECS Tuning | |||||
| 10 | Cam disc | 1 | 24341204156 | ENDED | Shop at ECS Tuning | |||||
| 11 | Retainer spring | 1 | 24341203730 | ENDED | Shop at ECS Tuning | |||||
| 12 | Washer | 1 | 24341203734 | ENDED | Shop at ECS Tuning | |||||
| 13 | Circlip | B8 | 1 | 07129904492 | Shop at ECS Tuning | |||||
| 14 | O-ring | 1 | 24121666382 | $2.80 | Shop at ECS Tuning | |||||
| 15 | Selector lever | 1 | 24341201559 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
