ZF 3hp12 gear shift/parking lock for BMW 1500-2000CS 1800 (1971)

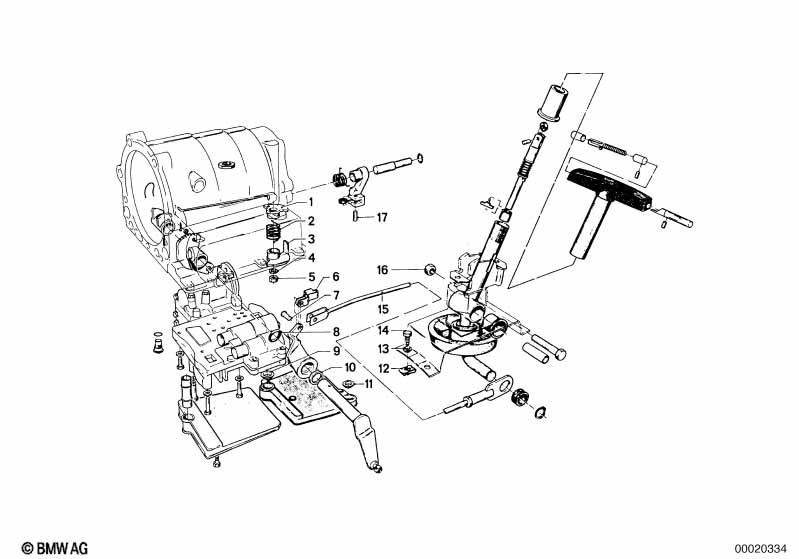

This ZF 3hp12 gear shift/parking lock technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Schema R-1-2-A-0-P | |||||||||
| 04 | Washer | 6,4 | 1 | 07119936424 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 06 | Clip | 1 | 24511666369 | ENDED | Shop at ECS Tuning | |||||
| 08 | O-ring | 1 | 24121666382 | $2.80 | Shop at ECS Tuning | |||||
| 09 | Gasket ring | 1 | 24331200407 | ENDED | Shop at ECS Tuning | |||||
| 10 | Gasket ring | 1 | 24121202549 | ENDED | Shop at ECS Tuning | |||||
| 11 | Gasket ring | 3HP | 1 | 24331200408 | ENDED | Shop at ECS Tuning | ||||
| 12 | Nut | ST8-1 | 3 | 07129926117 | $0.24 | ENDED | Shop at ECS Tuning | |||
| 13 | Washer | 8,4X18X2MM | 3 | 07149180923 | Shop at ECS Tuning | |||||
| 14 | Hex head screw | B8X16 | 3 | 07119916828 | ENDED | Shop at ECS Tuning | ||||
| 15 | Selector rod | 1 | 25161202243 | ENDED | Shop at ECS Tuning | |||||
| 16 | Self-locking hex nut | M8-8-ZNS3 | 1 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 ZF 3hp12 gear shift/parking lock?
- This technical diagram illustrates the ZF 3hp12 gear shift/parking lock within the Automatic transmission group for the 1500-2000CS 1800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Washer (Part #07119936424).
- Which models use the hardware listed in this ZF 3hp12 gear shift/parking lock?
- The hardware and components featured in the ZF 3hp12 gear shift/parking lock are specific to the 1500-2000CS 1800 produced during 1971. These technical specifications ensure that parts like the Washer (07119936424) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 3hp12 gear shift/parking lock assembly?
- Each item in the ZF 3hp12 gear shift/parking lock corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Washer by locating its position on the schematic, which then links to the official BMW part number 07119936424 for the Automatic transmission section.
