ZF 3hp12 housing parts/oil pan for BMW 1500-2000CS 2000C (1970)

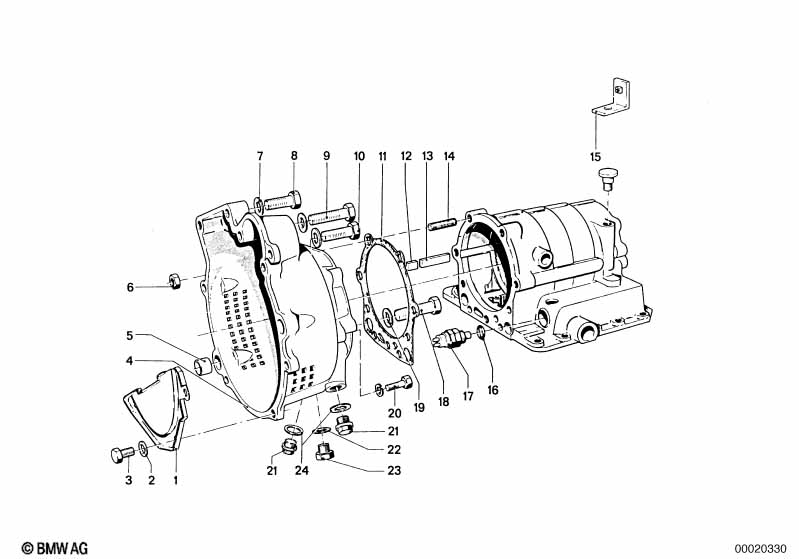

This ZF 3hp12 housing parts/oil pan technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000C. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Schema R-1-2-A-0-P | |||||||||
| 01 | Covering plate | 1 | 21110670050 | $7.16 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Housing | 1 | 24111620151 | ENDED | Shop at ECS Tuning | |||||
| 05 | Dowel | D=14,5/11,0MM | 2 | 24411200459 | $13.83 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex nut | M8-8-ZNNIV SI | 10 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Gasket | 1 | 24111620152 | ENDED | Shop at ECS Tuning | |||||
| 12 | Spring | 2 | 24111606174 | ENDED | Shop at ECS Tuning | |||||
| 13 | Spring | 2 | 24111606175 | ENDED | Shop at ECS Tuning | |||||
| 14 | Stud bolt | M8X30-ZNS3 | 9 | 07129906148 | $0.80 | Shop at ECS Tuning | ||||
| 15 | Bracket | 1 | 24511103560 | ENDED | Shop at ECS Tuning | |||||
| 16 | Gasket ring | X | 24111606162 | ENDED | Shop at ECS Tuning | |||||
| 16 | Gasket ring | X | 24111606163 | ENDED | Shop at ECS Tuning | |||||
| 16 | Gasket ring | X | 24111606164 | ENDED | Shop at ECS Tuning | |||||
| 16 | Gasket ring | 1,600MM | X | 24231200165 | $0.56 | ENDED | Shop at ECS Tuning | |||
| 16 | Gasket ring | 1,400MM | X | 24231200166 | $1.10 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M10X50 | 2 | 07119912646 | ENDED | Shop at ECS Tuning | ||||
| 19 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 20 | Hex bolt | M6X22-8.8-ZNS3 | 8 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
| 21 | Screw plug | AM18X1,5 | 3 | 07119919246 | $2.40 | ENDED | Shop at ECS Tuning | |||
| 22 | Gasket ring | A10X13,5-CU | 1 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 23 | Screw plug | M10X1-8.8-ZNNIV | 3 | 11127539543 | $2.12 | Shop at ECS Tuning | ||||
| 24 | Gasket ring | A18X22-CU | 3 | 07119963308 | $0.25 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
