Automatic transmission for BMW 2500-3.3Li 2800 (1970)

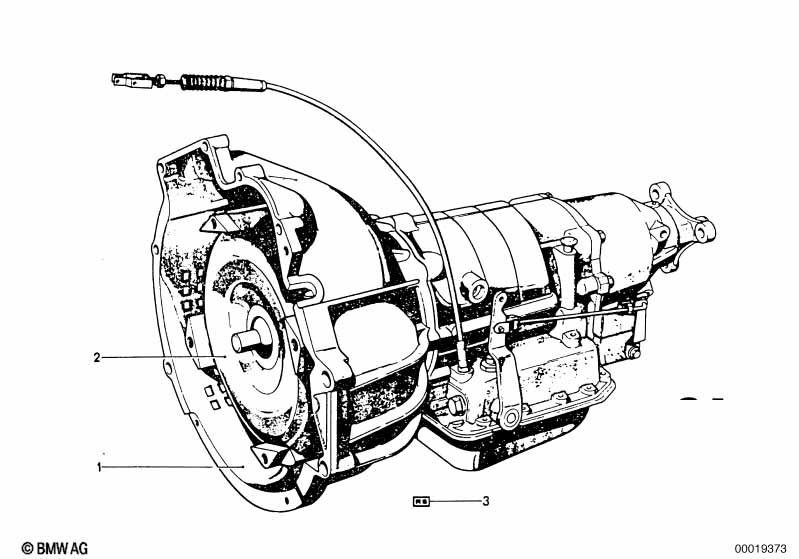

This Automatic transmission technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. automatic transmission | 3HP20 | 1 | 05/1969 | 01/1975 | 24001201051 | $3671.64 | ENDED | Shop at ECS Tuning | |
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 02 | Exch. torque converter | 1 | 05/1969 | 01/1975 | 24401202074 | ENDED | Shop at ECS Tuning | |||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 03 | Gasket set f automatik transmission "AF" | 3HP20 | 1 | 24001201751 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
