Bw 65 brake bands for BMW 2.5CS-3.0CSL 3.0CS (1973)

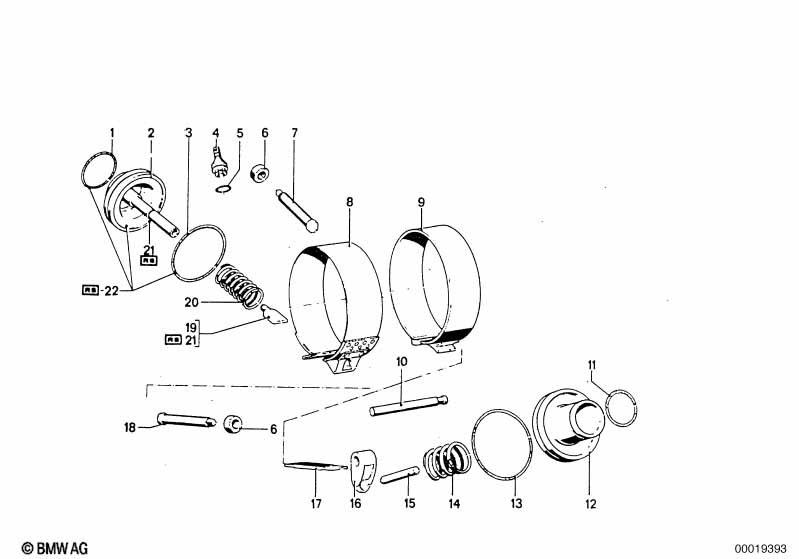

This Bw 65 brake bands technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | O-ring | 1 | 24341203222 | ENDED | Shop at ECS Tuning | |||||
| 03 | O-ring | 1 | 24341203221 | ENDED | Shop at ECS Tuning | |||||
| 04 | Breather | 1 | 24341204333 | $4.46 | Shop at ECS Tuning | |||||
| 05 | O-ring | 1 | 24341203243 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hex nut | 2 | 24341203241 | ENDED | Shop at ECS Tuning | |||||
| 07 | Adjusting screw | 1 | 24341203239 | ENDED | Shop at ECS Tuning | |||||
| 08 | Brake band front | 1 | 24241203378 | ENDED | Shop at ECS Tuning | |||||
| 09 | Brake band rear | 1 | 24241207764 | $255.56 | ENDED | Shop at ECS Tuning | ||||
| 10 | Pin | 1 | 24341203244 | ENDED | Shop at ECS Tuning | |||||
| 11 | O-ring | 1 | 24341203232 | ENDED | Shop at ECS Tuning | |||||
| 12 | Piston | 1 | 24341203231 | ENDED | Shop at ECS Tuning | |||||
| 13 | O-ring | 1 | 24341203233 | ENDED | Shop at ECS Tuning | |||||
| 14 | Compression spring | 1 | 24341203234 | ENDED | Shop at ECS Tuning | |||||
| 15 | Thrust adapter | 1 | 24241203392 | ENDED | Shop at ECS Tuning | |||||
| 16 | Lever | 1 | 24341203285 | ENDED | Shop at ECS Tuning | |||||
| 17 | Thrust adapter | 1 | 24241203391 | ENDED | Shop at ECS Tuning | |||||
| 18 | Adjusting screw | 1 | 24341203240 | ENDED | Shop at ECS Tuning | |||||
| 20 | Compression spring | 1 | 24341203223 | ENDED | Shop at ECS Tuning | |||||
| 21 | Repair kit piston with thrust piece | 1 | 24341204337 | ENDED | Shop at ECS Tuning | |||||
| 22 | Repair kit piston | 1 | 24341204478 | ENDED | Shop at ECS Tuning | |||||
| Getr.Nr. ->-> 14443 / 17370 | ||||||||||
