Bw 65 gear shift/parking lock for BMW 2.5CS-3.0CSL 3.0CS (1973)

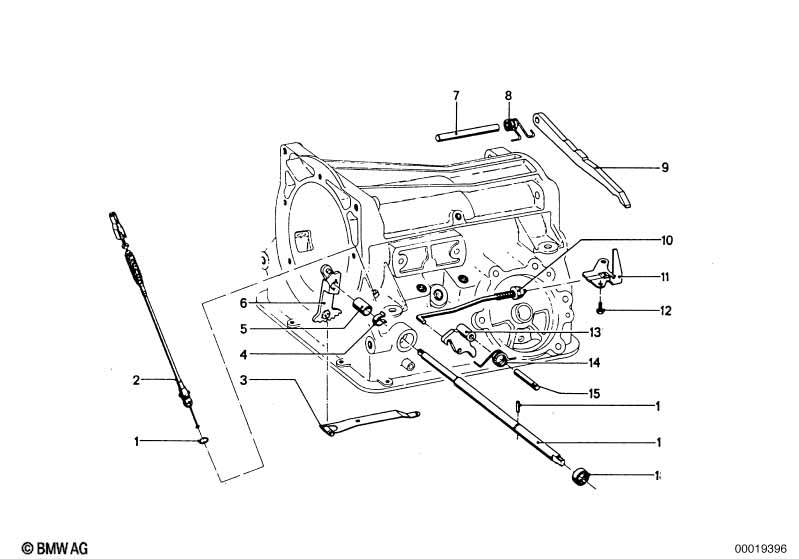

This Bw 65 gear shift/parking lock technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | O-ring | 1 | 24341203482 | $2.42 | Shop at ECS Tuning | |||||
| 02 | Accelerator bowden cable | 1 | 24341203479 | $35.75 | Shop at ECS Tuning | |||||
| 03 | Spring | 1 | 24311203462 | ENDED | Shop at ECS Tuning | |||||
| 04 | Spiral tension pin | 1 | 24241207413 | ENDED | Shop at ECS Tuning | |||||
| 05 | Locking disc | 1 | 24241207412 | ENDED | Shop at ECS Tuning | |||||
| 06 | Locking disc | 1 | 24241207408 | ENDED | Shop at ECS Tuning | |||||
| 07 | Pin | 1 | 24241203246 | ENDED | Shop at ECS Tuning | |||||
| 08 | Spring | 1 | 24241203247 | ENDED | Shop at ECS Tuning | |||||
| 09 | Pawl | 1 | 24241204247 | ENDED | Shop at ECS Tuning | |||||
| 10 | Connection rod | 1 | 24241203393 | ENDED | Shop at ECS Tuning | |||||
| 11 | Plate | 1 | 24241203398 | ENDED | Shop at ECS Tuning | |||||
| 12 | Hex bolt | 2 | 24241203399 | ENDED | Shop at ECS Tuning | |||||
| 13 | Lever | 1 | 24241203248 | ENDED | Shop at ECS Tuning | |||||
| 14 | Retainer spring | 1 | 24241203249 | ENDED | Shop at ECS Tuning | |||||
| 15 | Pin | 1 | 24241203250 | ENDED | Shop at ECS Tuning | |||||
| 16 | Spiral tension pin | 1 | 24241207413 | ENDED | Shop at ECS Tuning | |||||
| 17 | Shaft | 1 | 24241207409 | ENDED | Shop at ECS Tuning | |||||
| 18 | Gasket ring | 1 | 24341207763 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
