ZF 3hp20 gear shift/parking lock for BMW 2.5CS-3.0CSL 2.5CS

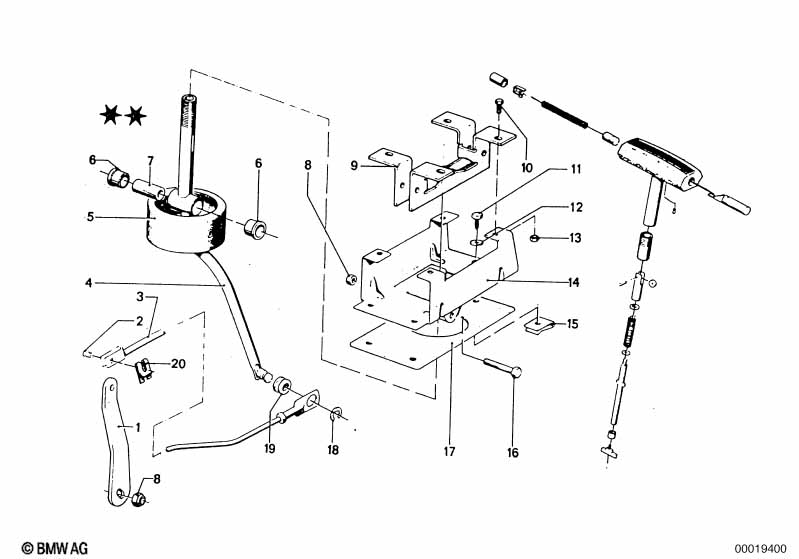

This ZF 3hp20 gear shift/parking lock technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2.5CS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Selector lever | 1 | 24511202800 | $9.68 | Shop at ECS Tuning | |||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 02 | Pin | A6X12X8,8-ZN | 1 | 07129940707 | ENDED | Shop at ECS Tuning | ||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 03 | Selector rod | 1 | 25161203006 | $49.35 | ENDED | Shop at ECS Tuning | ||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 04 | Shift lever | 1 | 25161203635 | $81.75 | ENDED | Shop at ECS Tuning | ||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 05 | Rubber seal | 1 | 25161200013 | $5.03 | ENDED | Shop at ECS Tuning | ||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 06 | Bush | 2 | 25161200421 | $2.97 | ENDED | Shop at ECS Tuning | ||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 07 | Bush | 1 | 25161200314 | $1.52 | ENDED | Shop at ECS Tuning | ||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 08 | Self-locking hex nut | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 09 | Clutch disk asbestos-free | 1 | 06/1974 | 11/1975 | 21211223083 | $156.24 | ENDED | Shop at ECS Tuning | ||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 10 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 11 | Hex head screw | ST8X22-C | 3 | 07119916879 | $0.77 | Shop at ECS Tuning | ||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 12 | Washer | 8,4X16X1,6-ZNNV | 3 | 07119907030 | Shop at ECS Tuning | |||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 13 | Hex nut | M6-8-ZNS3 | 4 | 07129904876 | $0.16 | Shop at ECS Tuning | ||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 13 | Self-locking hex nut | M6 ZNNIV SI | 4 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 14 | Carrier | 1 | 25161200940 | ENDED | Shop at ECS Tuning | |||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 15 | Nut | ST8-1 | 3 | 07129926117 | $0.24 | ENDED | Shop at ECS Tuning | |||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 16 | Hex bolt | M8X50 | 1 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 17 | Sound absorber | 1 | 25161200947 | ENDED | Shop at ECS Tuning | |||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 18 | Circlip | 8,0 | 1 | 07119932863 | $0.11 | Shop at ECS Tuning | ||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 19 | Bush | 1 | 09/1971 | 11/1975 | 24511666364 | $1.70 | ENDED | Shop at ECS Tuning | ||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 19 | Shim | 4,800MM | 1 | 11/1973 | 11/1975 | 25161205680 | $8.05 | ENDED | Shop at ECS Tuning | |
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
| 20 | Clamp | A6 | 1 | 07129934910 | $0.66 | Shop at ECS Tuning | ||||
| Fg -> 2230960 / 3.0 Csa Fg -> 2250188 / 3.0 Csa/Usa |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 2.5CS ZF 3hp20 gear shift/parking lock?
- This technical diagram illustrates the ZF 3hp20 gear shift/parking lock within the Automatic transmission group for the 2.5CS-3.0CSL 2.5CS. It provides a detailed exploded view of the components, identifying key parts such as the Selector lever (Part #24511202800).
- Which models use the hardware listed in this ZF 3hp20 gear shift/parking lock?
- The hardware and components featured in the ZF 3hp20 gear shift/parking lock are specific to the 2.5CS-3.0CSL 2.5CS. These technical specifications ensure that parts like the Selector lever (24511202800) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 3hp20 gear shift/parking lock assembly?
- Each item in the ZF 3hp20 gear shift/parking lock corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 2.5CS, you can identify the Selector lever by locating its position on the schematic, which then links to the official BMW part number 24511202800 for the Automatic transmission section.
