Automatic transmission for BMW 2500-3.3Li 3.0Si (1975)

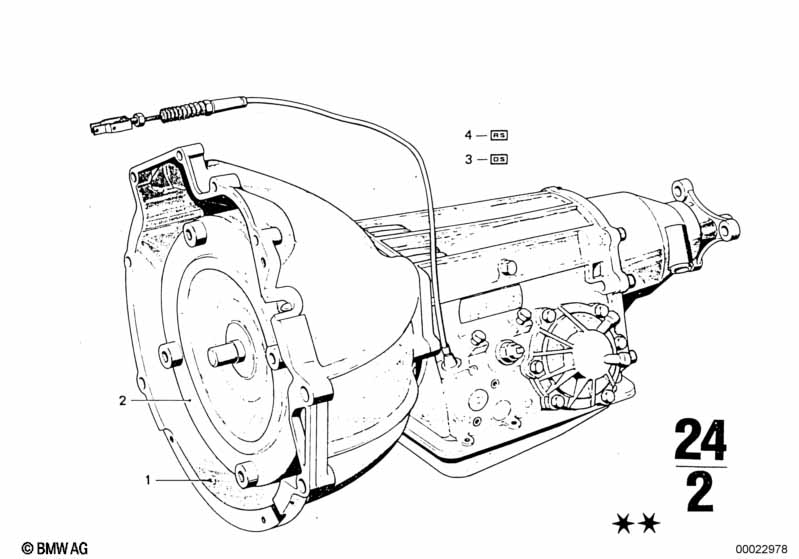

This Automatic transmission technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. automatic transmission | BW65 | 1 | 08/1971 | 02/1977 | 24001205097 | ENDED | Shop at ECS Tuning | ||
| 02 | Exch. torque converter | BW65 | 1 | 08/1971 | 02/1977 | 24401202999 | ENDED | Shop at ECS Tuning | ||
| 03 | Gasket set automatik transmission | BW65 | 1 | 24101205475 | ENDED | Shop at ECS Tuning | ||||
| 04 | Repair kit seal rings | BW65 | 1 | 24111203714 | ENDED | Shop at ECS Tuning | ||||
| 05 | Repair kit, spacer shims | BW65 | 1 | 24221203717 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Automatic transmission?
- This technical diagram illustrates the Automatic transmission within the Automatic transmission group for the 2500-3.3Li 3.0Si produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Exch. automatic transmission (Part #24001205097).
- Which models use the hardware listed in this Automatic transmission?
- The hardware and components featured in the Automatic transmission are specific to the 2500-3.3Li 3.0Si produced during 1975. These technical specifications ensure that parts like the Exch. automatic transmission (24001205097) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Automatic transmission assembly?
- Each item in the Automatic transmission corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Exch. automatic transmission by locating its position on the schematic, which then links to the official BMW part number 24001205097 for the Automatic transmission section.
