Components ZF 3HP20 for BMW 2500-3.3Li 2800 (1971)

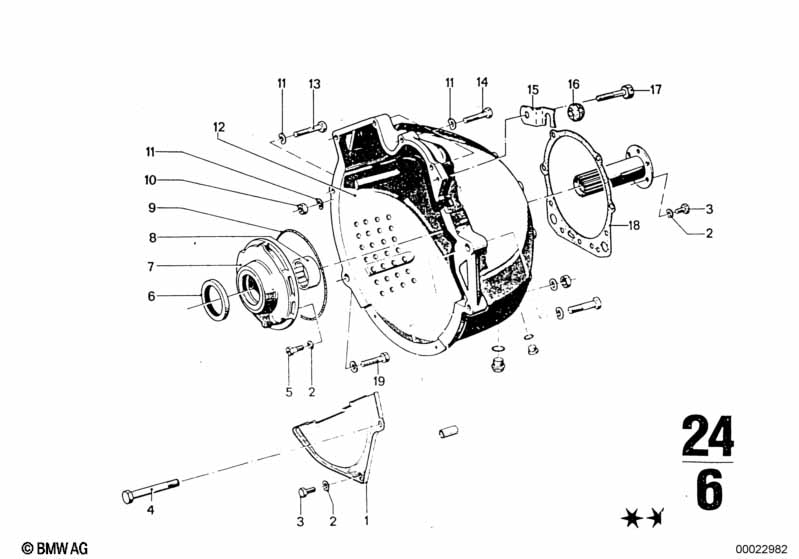

This Components ZF 3HP20 technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering plate | 1 | 21111255083 | $10.16 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X16-8.8-ZNS3 | 7 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M10X75 | 1 | 07119912677 | $1.18 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M6X25 | 8 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Shaft seal | 48X65X4 | 1 | 24311201104 | $57.20 | ENDED | Shop at ECS Tuning | |||
| 07 | Oil pump | 1 | 24311202684 | ENDED | Shop at ECS Tuning | |||||
| 08 | Needle bearing | 1 | 24311202685 | ENDED | Shop at ECS Tuning | |||||
| 09 | O-ring | 1 | 24311201105 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hex nut | M8-8-ZNNIV SI | 11 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 11 | Wave washer | 8,4X15-ZNS3 | 18 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Converter housing | 1 | 24411202687 | ENDED | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M8X35 | 6 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Holder | 1 | 24111205402 | $1.29 | ENDED | Shop at ECS Tuning | ||||
| 16 | Rubber grommet | 1 | 61131362325 | $0.50 | ENDED | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M8X30-ZN | 1 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 18 | Gasket Asbestos Free | 1 | 24111202619 | $3.47 | Shop at ECS Tuning | |||||
| 19 | Hex bolt | M10X55-10.9ZNS3 | 2 | 07119905161 | $0.96 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Components ZF 3HP20?
- This technical diagram illustrates the Components ZF 3HP20 within the Automatic transmission group for the 2500-3.3Li 2800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Covering plate (Part #21111255083).
- Which models use the hardware listed in this Components ZF 3HP20?
- The hardware and components featured in the Components ZF 3HP20 are specific to the 2500-3.3Li 2800 produced during 1971. These technical specifications ensure that parts like the Covering plate (21111255083) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Components ZF 3HP20 assembly?
- Each item in the Components ZF 3HP20 corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Covering plate by locating its position on the schematic, which then links to the official BMW part number 21111255083 for the Automatic transmission section.
