Bw 65 housing+attach.parts for BMW 2500-3.3Li 3.0SBav (1973)

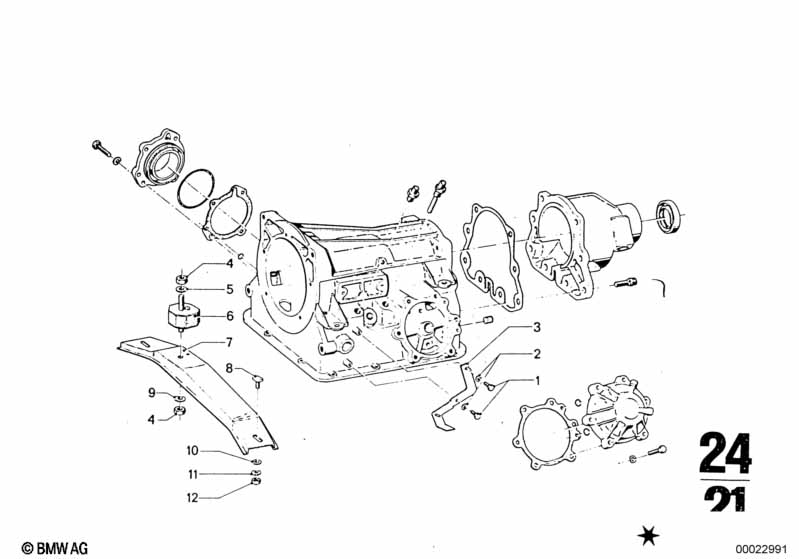

This Bw 65 housing+attach.parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0SBav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M5X10 | 2 | 07119913218 | $0.12 | Shop at ECS Tuning | ||||
| 02 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Support | 1 | 24511202906 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hex nut | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 05 | Washer | 10,5X25X3,5MM | 1 | 64521350824 | $2.67 | Shop at ECS Tuning | ||||
| 07 | Cross member | 1 | 24711108004 | $9.04 | ENDED | Shop at ECS Tuning | ||||
| 08 | Square headed bolt | M8X18 | 2 | 23711130250 | $4.27 | Shop at ECS Tuning | ||||
| 09 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 10 | Washer | A8,4X25 | 2 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 11 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0SBav Bw 65 housing+attach.parts?
- This technical diagram illustrates the Bw 65 housing+attach.parts within the Automatic transmission group for the 2500-3.3Li 3.0SBav produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119913218).
- Which models use the hardware listed in this Bw 65 housing+attach.parts?
- The hardware and components featured in the Bw 65 housing+attach.parts are specific to the 2500-3.3Li 3.0SBav produced during 1973. These technical specifications ensure that parts like the Hex bolt (07119913218) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bw 65 housing+attach.parts assembly?
- Each item in the Bw 65 housing+attach.parts corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0SBav, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119913218 for the Automatic transmission section.
