ZF 3hp22 housing parts/oil pan for BMW 2500-3.3Li 3.0Si (1976)

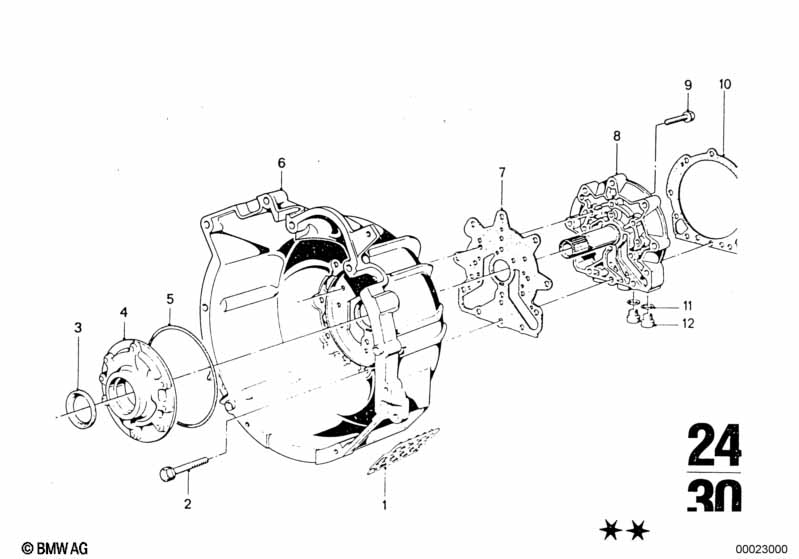

This ZF 3hp22 housing parts/oil pan technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Protection grid f additional fan | 1 | 24401206042 | $3.02 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M8X55-Z3 | 10 | 07119912601 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shaft seal | 40X52X7 | 1 | 24311422671 | $11.45 | Shop at ECS Tuning | ||||
| 04 | Oil pump | 1 | 24311207748 | $323.81 | ENDED | Shop at ECS Tuning | ||||
| 05 | O-ring | 128X3 | 1 | 24201217321 | $9.32 | Shop at ECS Tuning | ||||
| 06 | Converter housing | 1 | 24411206035 | $325.87 | ENDED | Shop at ECS Tuning | ||||
| 07 | Gasket Asbestos Free | 1 | 24401215639 | $4.10 | ENDED | Shop at ECS Tuning | ||||
| 08 | Intermediate plate assy | 1 | 24401215340 | $327.14 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X28-Z3 | 9 | 07119915183 | ENDED | Shop at ECS Tuning | ||||
| 10 | Gasket Asbestos Free | 1 | 24111205901 | $3.16 | Shop at ECS Tuning | |||||
| 11 | Gasket ring | A10X13,5-CU | 2 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Screw plug | M10X1-ST-ZNS3 | 2 | 07119904393 | $1.89 | Shop at ECS Tuning |
