ZF 3hp22 brake clutch D for BMW 2500-3.3Li 2500 (1971)

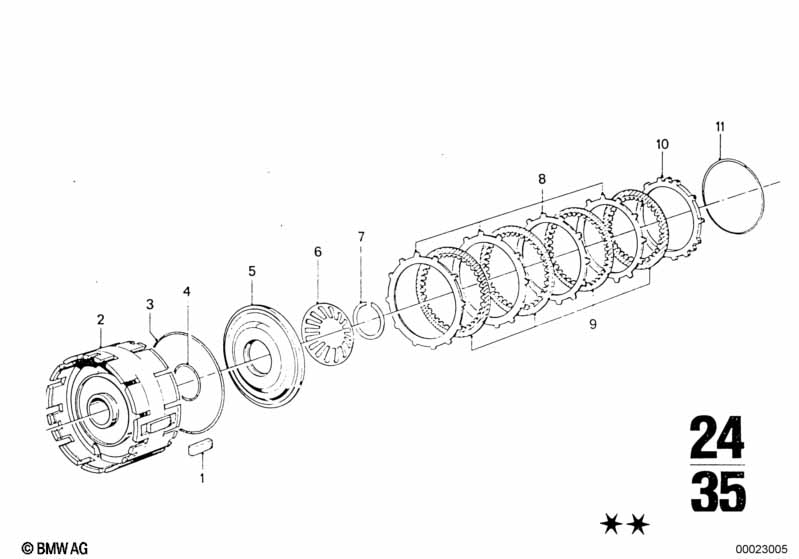

This ZF 3hp22 brake clutch D technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring | 2 | 24231206105 | $1.13 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cylinder | 1 | 24231205950 | $149.54 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cylinder | 1 | 24231209812 | $149.54 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Center plate | 1 | 24231217142 | $90.12 | ENDED | Shop at ECS Tuning | ||||
| 03 | O-ring | 1 | 24231218761 | $14.71 | Shop at ECS Tuning | |||||
| 04 | O-ring | 1 | 24231206106 | $3.62 | Shop at ECS Tuning | |||||
| 05 | Piston | 1 | 24231205952 | $56.64 | ENDED | Shop at ECS Tuning | ||||
| 06 | Diaphragm spring | 1 | 24231205954 | $8.85 | ENDED | Shop at ECS Tuning | ||||
| 07 | Snap ring | SP50 | 1 | 07119933304 | ENDED | Shop at ECS Tuning | ||||
| 08 | Outer disc | 4 | 24231205935 | $20.51 | Shop at ECS Tuning | |||||
| 09 | Clutch disc | 4 | 24231205955 | $15.24 | Shop at ECS Tuning | |||||
| 10 | Disc | 1 | 24231205956 | $39.06 | ENDED | Shop at ECS Tuning | ||||
| 11 | Snap ring | D=153MM | 1 | 24231205957 | $1.95 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
