ZF 3hp22 control unit for BMW 2500-3.3Li 2500 (1971)

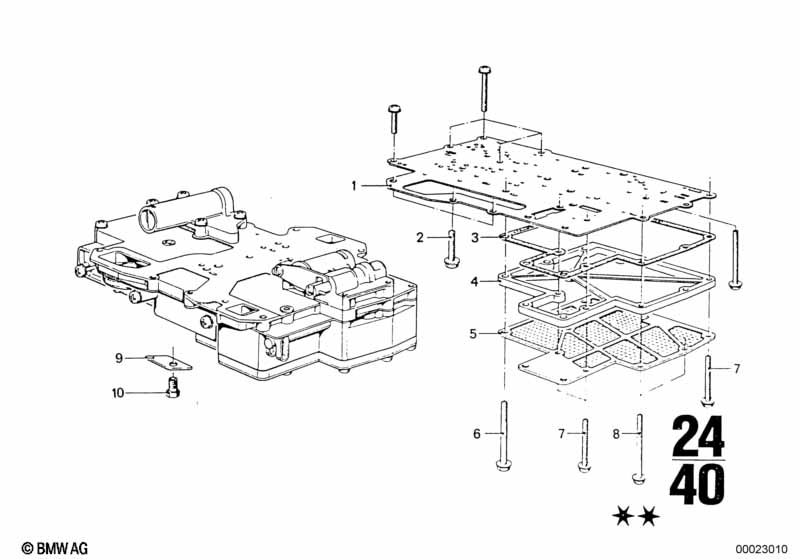

This ZF 3hp22 control unit technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket Asbestos Free | 1 | 24341206211 | ENDED | Shop at ECS Tuning | |||||
| 02 | Set bolt 20 | M6X25 | 3 | 07509064083 | ENDED | Shop at ECS Tuning | ||||
| 03 | Gasket Asbestos Free | 1 | 24341205974 | Shop at ECS Tuning | ||||||
| 04 | Gasket-flange | 1 | 24341205975 | Shop at ECS Tuning | ||||||
| 05 | Oil strainer | 1 | 24311201102 | $39.91 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X75 | 7 | 07119912952 | ENDED | Shop at ECS Tuning | ||||
| 07 | Fillister head screw | AM5X60-Z3 | 3 | 07119906835 | ENDED | Shop at ECS Tuning | ||||
| 08 | Fillister-head screw | M5X75 | 2 | 24341207609 | $2.42 | ENDED | Shop at ECS Tuning | |||
| 09 | Support plate | 1 | 24341206292 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X28-Z3 | 2 | 07119915183 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
