ZF 3hp22 gear shift/parking lock for BMW 2500-3.3Li 3.0SBav (1973)

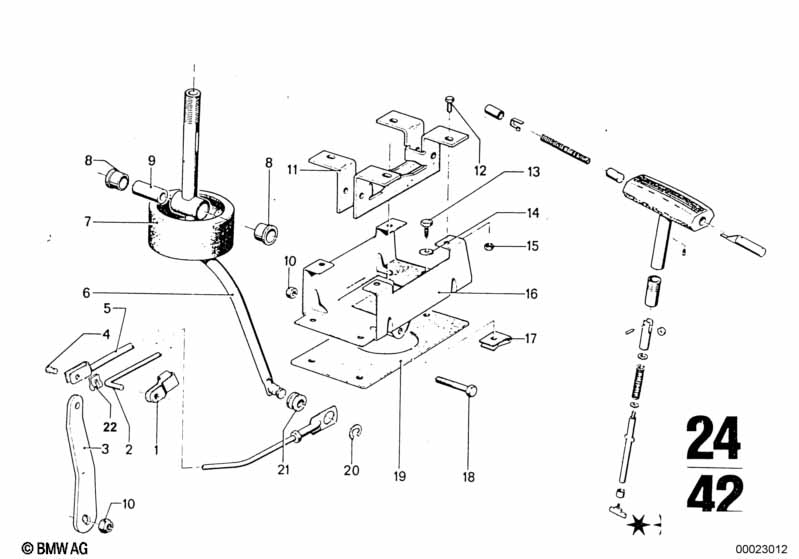

This ZF 3hp22 gear shift/parking lock technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0SBav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Clamp | A6 | 1 | 08/1971 | 02/1977 | 07129934910 | $0.66 | Shop at ECS Tuning | ||
| 04 | Pin | A6X12X8,8-ZN | 1 | 08/1971 | 02/1977 | 07129940707 | ENDED | Shop at ECS Tuning | ||
| 05 | Selector rod | 1 | 08/1971 | 02/1977 | 25161203006 | $49.35 | ENDED | Shop at ECS Tuning | ||
| 06 | Shift lever | 1 | 25161203635 | $81.75 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rubber seal | 1 | 25161200013 | $5.03 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bush | 2 | 25161200421 | $2.97 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bush | 1 | 25161200314 | $1.52 | ENDED | Shop at ECS Tuning | ||||
| 10 | Self-locking hex nut | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 11 | Shifting gate | 1 | 08/1971 | 02/1977 | 25161203637 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 13 | Hex head screw | ST8X22-C | 3 | 07119916879 | $0.77 | Shop at ECS Tuning | ||||
| 14 | Washer | 8,4X16X1,6-ZNNV | 3 | 07119907030 | Shop at ECS Tuning | |||||
| 15 | Hex nut | M6-8-ZNS3 | 4 | 07129904876 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Self-locking hex nut | M6 ZNNIV SI | 4 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Carrier | 1 | 25161200940 | ENDED | Shop at ECS Tuning | |||||
| 17 | Nut | ST8-1 | 3 | 07129926117 | $0.24 | ENDED | Shop at ECS Tuning | |||
| 18 | Hex bolt | M8X50 | 1 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 19 | Sound absorber | 1 | 25161200947 | ENDED | Shop at ECS Tuning | |||||
| 20 | Circlip | 8,0 | 1 | 07119932863 | $0.11 | Shop at ECS Tuning | ||||
| 21 | Bush | 1 | 08/1969 | 09/1973 | 24511666364 | $1.70 | ENDED | Shop at ECS Tuning |
