A5S360R/390R Output for BMW 3 Series E46 330d (2003)

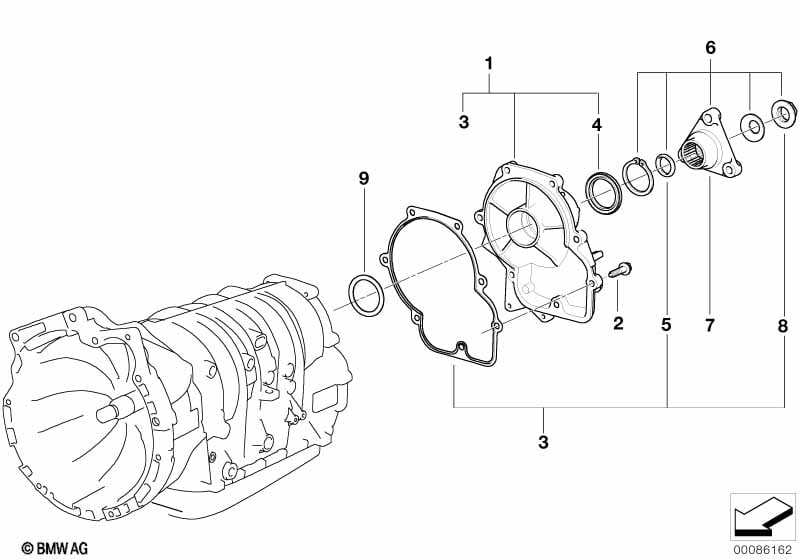

This A5S360R/390R Output technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit, output cover | 1 | 24117557048 | $292.03 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X33 | 7 | 24137533717 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Repair kit, output cover seal | 1 | 24137557072 | $34.57 | Shop at ECS Tuning | |||||
| 04 | Repair kit, shaft seal | 1 | 24137514548 | $32.17 | Shop at ECS Tuning | |||||
| 05 | Repair kit, output flange nut | 1 | 24217513337 | $17.48 | Shop at ECS Tuning | |||||
| 07 | Repair kit, output flange | 1 | 24217515389 | Shop at ECS Tuning | ||||||
| 08 | Repair kit, output flange nut | 1 | 24217513337 | $17.48 | Shop at ECS Tuning | |||||
| 09 | Spacer rings set | 1 | 24217509039 | $97.94 | Shop at ECS Tuning |
