Control unit EGS, programmed for BMW 5 Series E34 525tds (1995)

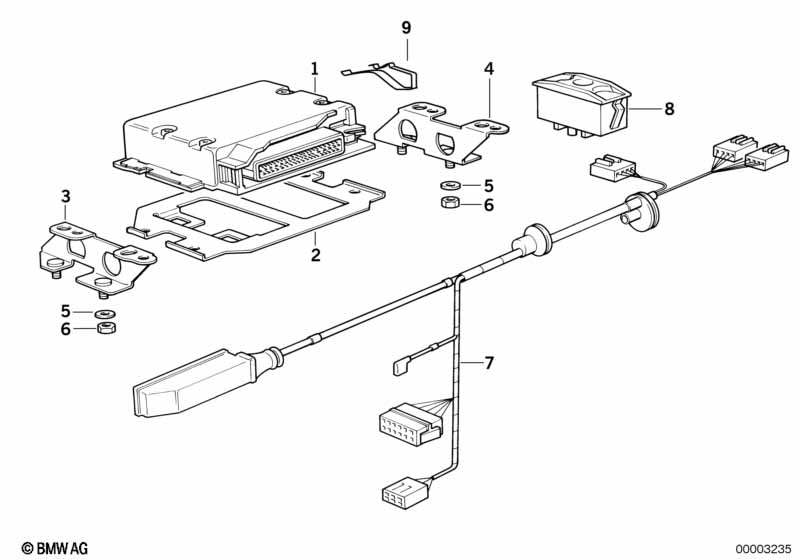

This Control unit EGS, programmed technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. control unit EGS programmed | GS7.21 | 1 | 01/1995 | 24601422423 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Switzerland |
L804A=Yes |
|||||||||
| 01 | Exch. control unit EGS programmed | GS7.21 | 1 | 01/1995 | 24601422425 | ENDED | Shop at ECS Tuning | |||
| 02 | Supporting plate | 1 | 12141727500 | $19.68 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bracket left | 1 | 12141727498 | $3.47 | Shop at ECS Tuning | |||||
| 04 | Bracket right | 1 | 12141727499 | $3.47 | Shop at ECS Tuning | |||||
| 05 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Switch EH-gearbox | 1 | 61318350352 | $84.81 | Shop at ECS Tuning | |||||
| 09 | Spring | 2 | 12901731968 | $1.43 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
